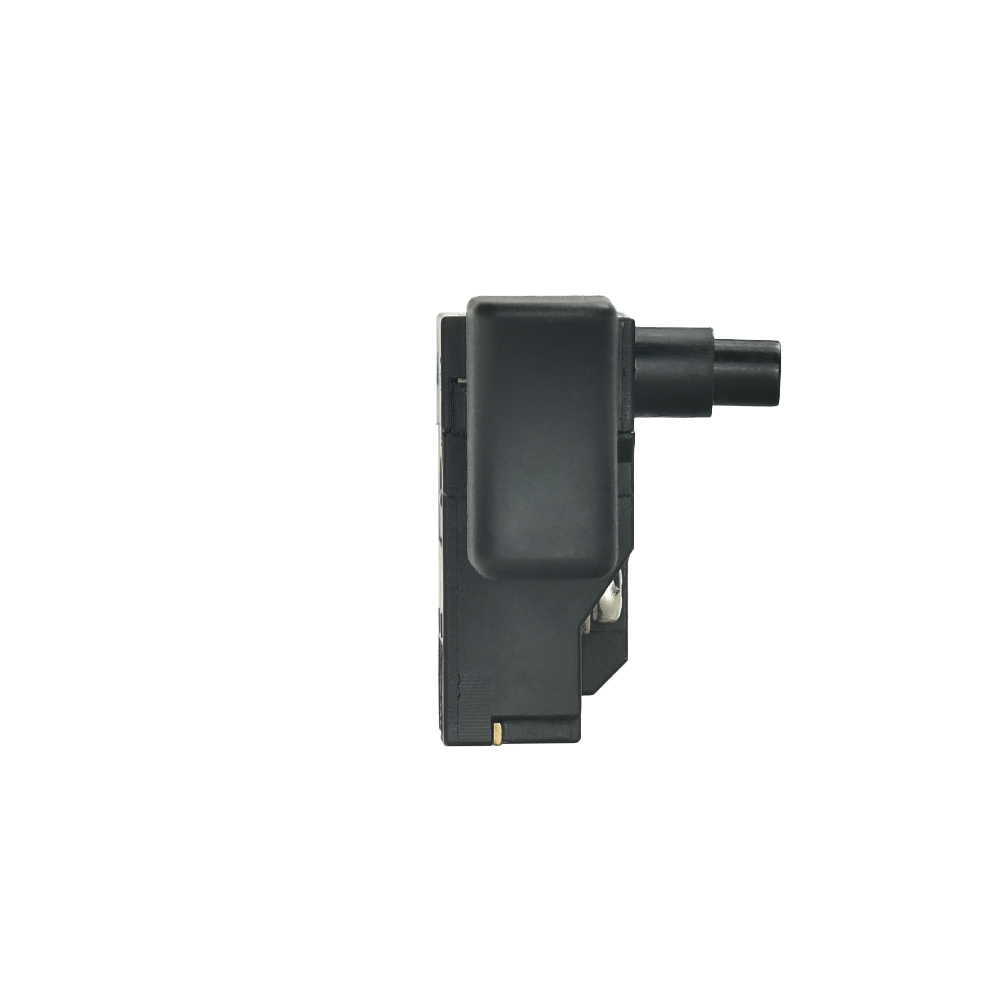

TS 03-2
TS 03-2
TS 03-2
TS 03-2

TS 03-2

Overview:
TS 03series are one general type trigger switch, integrate ddustproof , commonly for used in portable power tools such as Electric Drills,Marble Cutters, Circular Saws, Electric Routers,Belt Sanders,
if need any qualification or test report,please email to 705714886@qq.com
Inquire Now

TS 03-2

Inquire Now
Description

TS 03series are one general type trigger switch, integrate ddustproof , commonly for used in portable power tools such as Electric Drills,Marble Cutters, Circular Saws, Electric Routers,Belt Sanders, Electric Planers, etc.

Parameter

Features

Optional with following function: -SPNO
-One Pole NO,the other Connected
Optional with following lock types: -No Lock
-Lock-on
-Lock-off

Technical data

Mechanical life endurance ≥1E5
Electrical life endurance ≥5E4
Max.Inrush current at 250V 60A
Max.Inrush current at 125V 96A
Contact resistance ≥30m Ohm
Insulation resistance ≥7M Ohm
Dielectric strength of function 1500V
Dielectric strength of reinforced 3000V
Ambient temperature 0°C~55°C
Flammability UL 94V-0
Protection type IP40
Suitable for appliances of protection class II

Terminals

Input side: Screw terminals M3.5
Output side: Screw terminals M3.5
