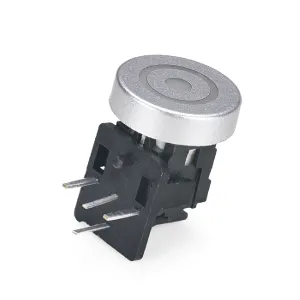

With a fixed stand and coversin many kinds of structure and color; High sensitive sounds silvery, feeling and rhythm are perfect; lt can be mounted with any color LED and double colors or 3colors LED according to preference; lt can be assembled in different ways: DIP & SMT, with pushbutton an tact for operating; We have got some patent for new project;
The switches work with all kinds of electrical appliances, such as audio apparatus, office equipment, instruments and meter equipment, TV, DVD and so on.
| Items | Standard | |
|---|---|---|
| Operating temperature range | -20℃ to +70℃ | |
| Electrical performance | Rating | 100mA. 30V DC |
| Insulation resistance | 100MΩ min. 100V DC | |
| Dielectric strength | AC250V (50-60Hz) for 1 min. | |
| Contact resistance | 50mΩ max. | |
| Durability | Lifetime | 100,000 Cycles |
| Mechanical performance | Operating force | 250 ± 50 gf |
| Travel | 0.25±0.10mm | |
We are a factory, we can guarantee our price is first-hand, not expensive and competitive.
if you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs. Express delivery charge depends on the quantity of the samples.
Depending upon the port of delivery, prices varies.
Generally our MOQ for switches is 10000pcs, and for mini switches is 50000pcs.
Also you can place a Trial orders at first without limit for MOQ.
Yes,we provide OEM service and can customize products according to the drawing.
We strictly control every detail of production, and every product is inspected by our QC team before delivery.
Samples, We will send to you within 3 days after payment received. Production for big quantity needs 7 to 15 days. And it also depends on product and quantity.
If you want to know the exact time. Email us the quantity, we will check the delivery time for you.
We will send the goods to you by sea, by air or by express like DHL, UPS, TNT, FEDEX,CHINA POST.
With a fixed stand and coversin many kinds of structure and color; High sensitive sounds silvery, feeling and rhythm are perfect; lt can be mounted with any color LED and double colors or 3colors LED according to preference; lt can be assembled in different ways: DIP & SMT, with pushbutton an tact for operating; We have got some patent for new project;
The switches work with all kinds of electrical appliances, such as audio apparatus, office equipment, instruments and meter equipment, TV, DVD and so on.
| Items | Standard | |
|---|---|---|
| Operating temperature range | -20℃ to +70℃ | |
| Electrical performance | Rating | 100mA. 30V DC |
| Insulation resistance | 100MΩ min. 100V DC | |
| Dielectric strength | AC250V (50-60Hz) for 1 min. | |
| Contact resistance | 50mΩ max. | |
| Durability | Lifetime | 100,000 Cycles |
| Mechanical performance | Operating force | 250 ± 50 gf |
| Travel | 0.25±0.10mm | |
