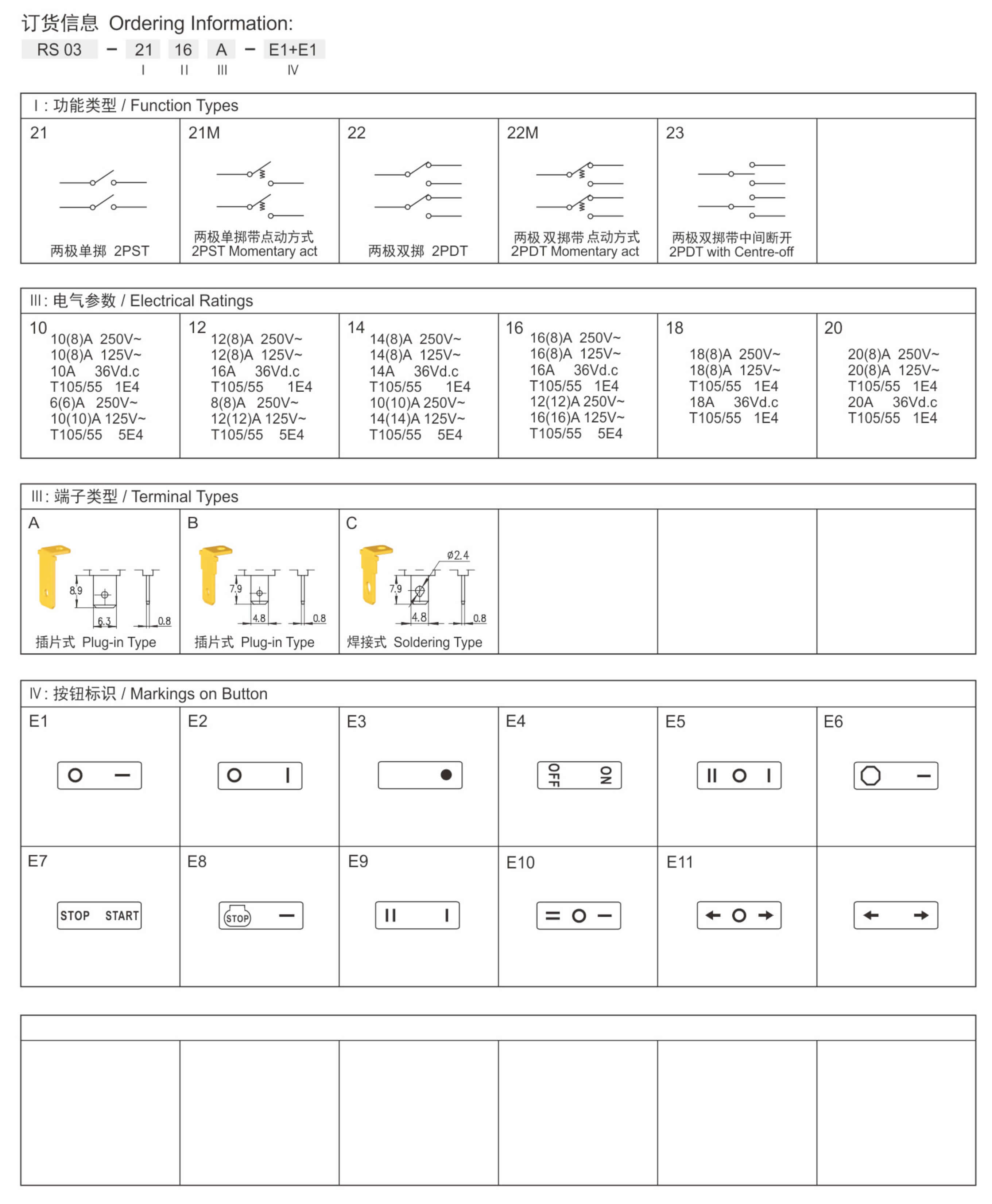

◆  Optional with the function as follows:

→  2PST (2 Pole Single Throw)

→  2PDT (2 Pole Double Throw)

→  2PDT with center off

→  Momentary act

◆  Input side/Output side:

→  Plug-in terminals 6.3×0.8mm

→  Plug-in terminals 4.8×0.8mm

→  Soldering terminals

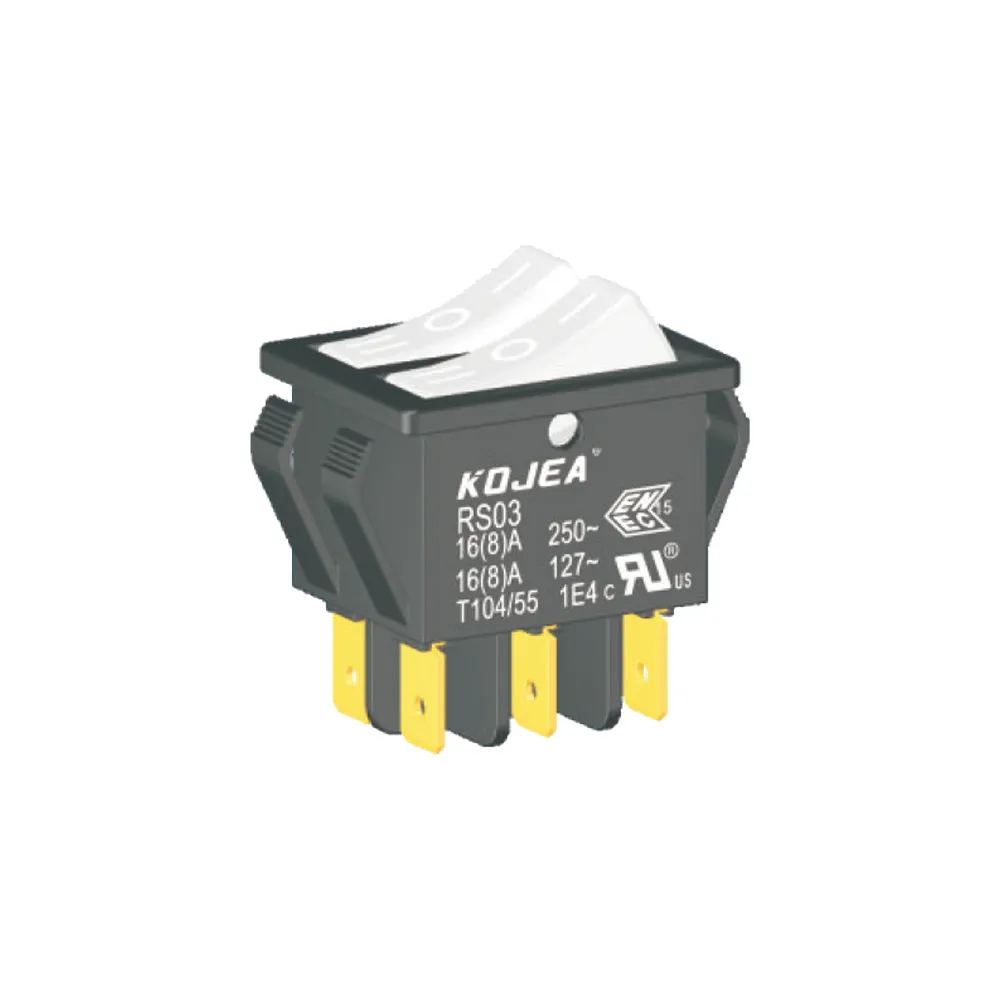

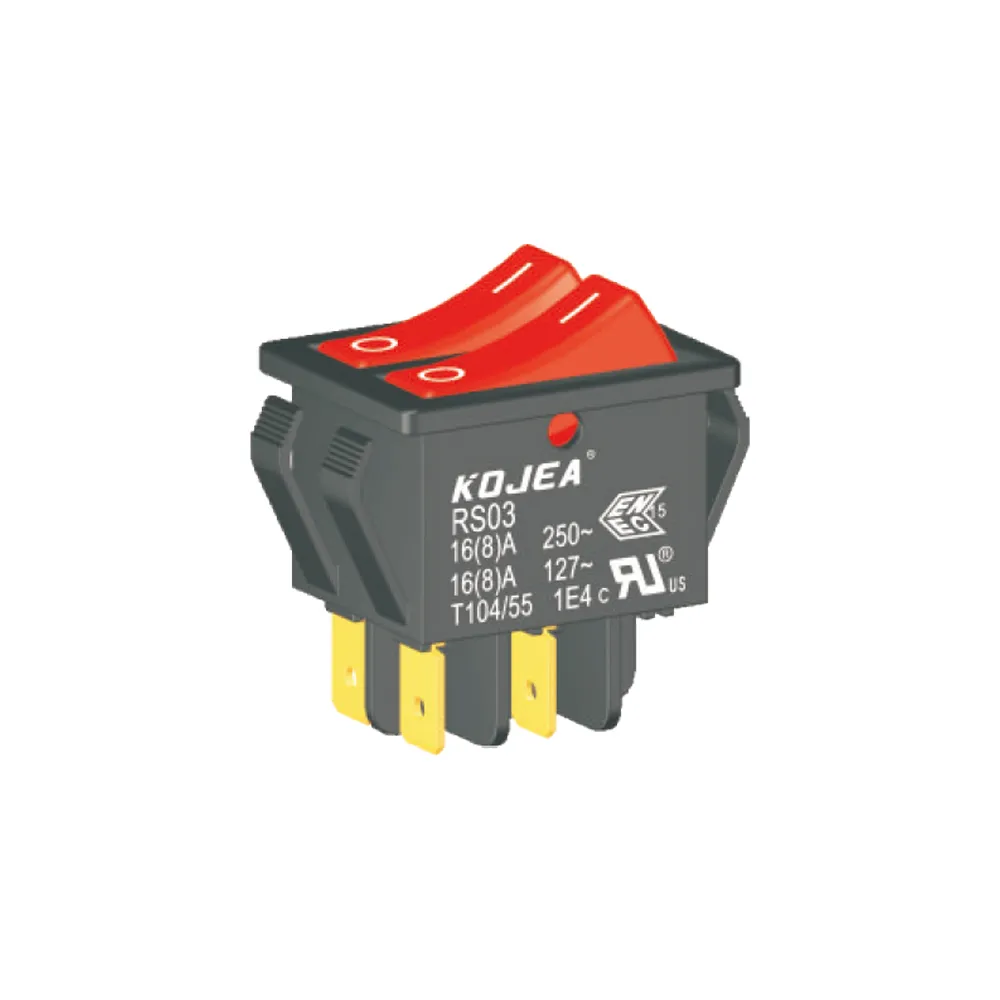

Power Tool Switch RS Series – RS03 Model Detailed Overview

Product Introduction

The RS03 series is a line of standard rocker switches engineered primarily for use in small home appliances and office equipment. Known for their reliability, versatility, and safety, these switches are commonly found in devices such as electric fans, drinking machines, electric heaters, and similar equipment. Their robust design and range of functions make the RS03 an excellent choice for manufacturers seeking durable control components for everyday consumer products.

Designed to withstand frequent operation, the RS03 switches combine user-friendly actuation with high electrical performance, ensuring long-term reliability. Their standard rocker mechanism provides intuitive ON/OFF or toggle control with positive tactile feedback, favored in both residential and commercial settings.

Product Features

The RS03 series offers various switching configurations to meet different application needs:

• 2PST (2 Pole Single Throw): Controls two circuits simultaneously with a simple ON/OFF function, ideal for appliances requiring dual-pole switching for safety and efficiency.

• 2PDT (2 Pole Double Throw): Allows switching between two sets of contacts, enabling devices to toggle between two different circuits or modes.

• 2PDT with center off: Adds a neutral off position between two active states, offering extra control flexibility and safety.

• Momentary action: The switch returns to its original position after activation, useful for functions requiring temporary engagement, such as reset or pulse controls.

These options ensure the RS03 can be tailored to various functional demands across multiple devices.

Technical Specifications

The RS03 switch series is built to meet stringent durability and safety standards:

• Mechanical life endurance: Rated for 50,000 to 100,000 cycles, supporting frequent switching without mechanical failure.

• Electrical life endurance: Endures 10,000 to 50,000 switching operations under electrical load, ensuring consistent performance.

• Maximum inrush current: Handles surge currents up to 48A or 72A at 250V AC, and 48A or 96A at 127V AC, allowing safe operation in devices with motors or heating elements that generate startup current spikes.

• Contact resistance: Maintains a low resistance of ≤30 milliohms, reducing energy loss and heat generation.

• Insulation resistance: At least 7 megaohms, providing excellent insulation for safety.

• Dielectric strength: 1500V for regular function and 3000V for reinforced insulation, protecting against electrical breakdowns.

• Operating temperature: Reliable operation from 0℃ to 105℃ ambient temperature and actuator temperature rated up to 55℃, suitable for many home and office environments.

• Flammability: Uses UL 94V-0 rated materials for enhanced fire safety.

• Protection rating: IP40, providing protection against solid objects larger than 1mm.

• Safety class: Designed for appliances under protection class II, meaning double insulation without the need for grounding.

Terminal Options

The RS03 switch supports multiple terminal configurations to simplify integration and wiring:

• Plug-in terminals 6.3×0.8mm: Quick-connect terminals for fast assembly and maintenance.

• Plug-in terminals 4.8×0.8mm: Smaller quick-connect terminals suitable for compact designs.

• Soldering terminals: Provide a secure and permanent connection for devices where wiring reliability is critical.

These choices offer flexibility to fit diverse product designs and manufacturing processes.

Application Scenarios

1. Small Home Appliances

The RS03 series is widely used in household appliances requiring dependable switching capabilities. Devices such as electric fans and electric heaters benefit from the switch’s high current capacity, durable construction, and safety features. Its ability to handle inrush currents ensures reliable operation with motor or heating element startup surges.

2. Drinking Machines and Kitchen Appliances

Switches in drinking machines often need to manage multiple circuits and offer precise control, functions supported by the RS03’s 2PDT and center-off configurations. Its flame-retardant construction and IP40 protection rating also contribute to safer kitchen appliance designs.

3. Office Equipment

Though primarily targeted at home appliances, the RS03 can also be employed in office equipment that requires robust and easy-to-operate control switches.

Advantages and Key Benefits

• Robust Performance: Long mechanical and electrical life support heavy use.

• Flexible Functionality: Multiple switching modes meet varied appliance needs.

• Safety Assurance: Flame-retardant materials and double insulation design protect users and devices.

• Environmental Tolerance: Operates safely across wide temperature ranges.

• Ease of Integration: Multiple terminal types facilitate quick and reliable installation.

Frequently Asked Questions (FAQ)

Q1: What does 2PST mean?
2PST stands for “Two Pole Single Throw,” meaning the switch controls two separate circuits simultaneously with an ON/OFF function.

Q2: How does 2PDT with center off work?
It is a double-throw switch with two active positions and a neutral “off” position in the center, allowing the user to switch between two modes or circuits while having a safe off state.

Q3: Can the RS03 switch handle devices with motors?
Yes, the switch supports high inrush currents (up to 72A at 250V and 96A at 127V), making it suitable for motor-driven appliances.

Q4: What is the IP40 protection rating?
IP40 means the switch is protected against solid objects larger than 1mm, such as small tools or wires, but has limited protection against water.

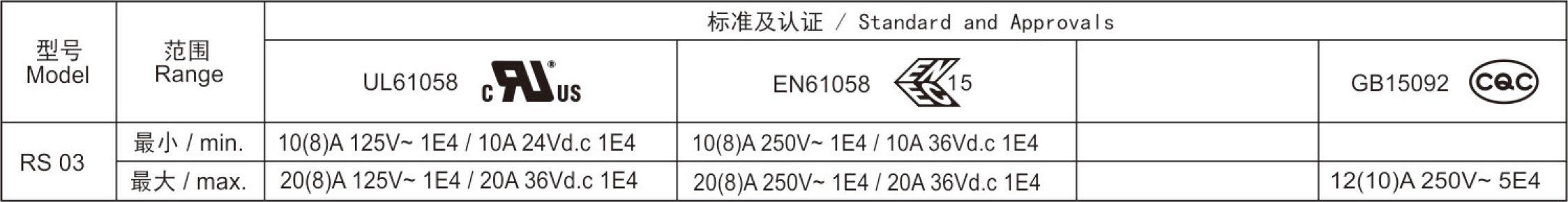

Q5: What safety certifications does RS03 meet?
RS03 uses UL 94V-0 flame-retardant materials and is designed for Class II appliances with double insulation, enhancing user safety.

Maintenance and Best Practices

• Keep Clean: Remove dust and debris regularly to maintain switch performance.

• Check Connections: Ensure terminals are firmly connected to avoid arcing or overheating.

• Operate Within Limits: Do not exceed rated voltage and current to prevent premature wear.

• Environmental Considerations: Avoid exposure to moisture and liquids due to IP40 protection level.

Conclusion

The RS03 rocker switch from the RS Series combines reliable performance, flexible functionality, and strong safety features tailored for small home appliances and office equipment. With a variety of switching modes and terminal options, it easily integrates into diverse devices, ensuring long-lasting and safe operation. The RS03’s design meets the rigorous demands of modern appliances, making it a trusted component for manufacturers and end-users alike.
