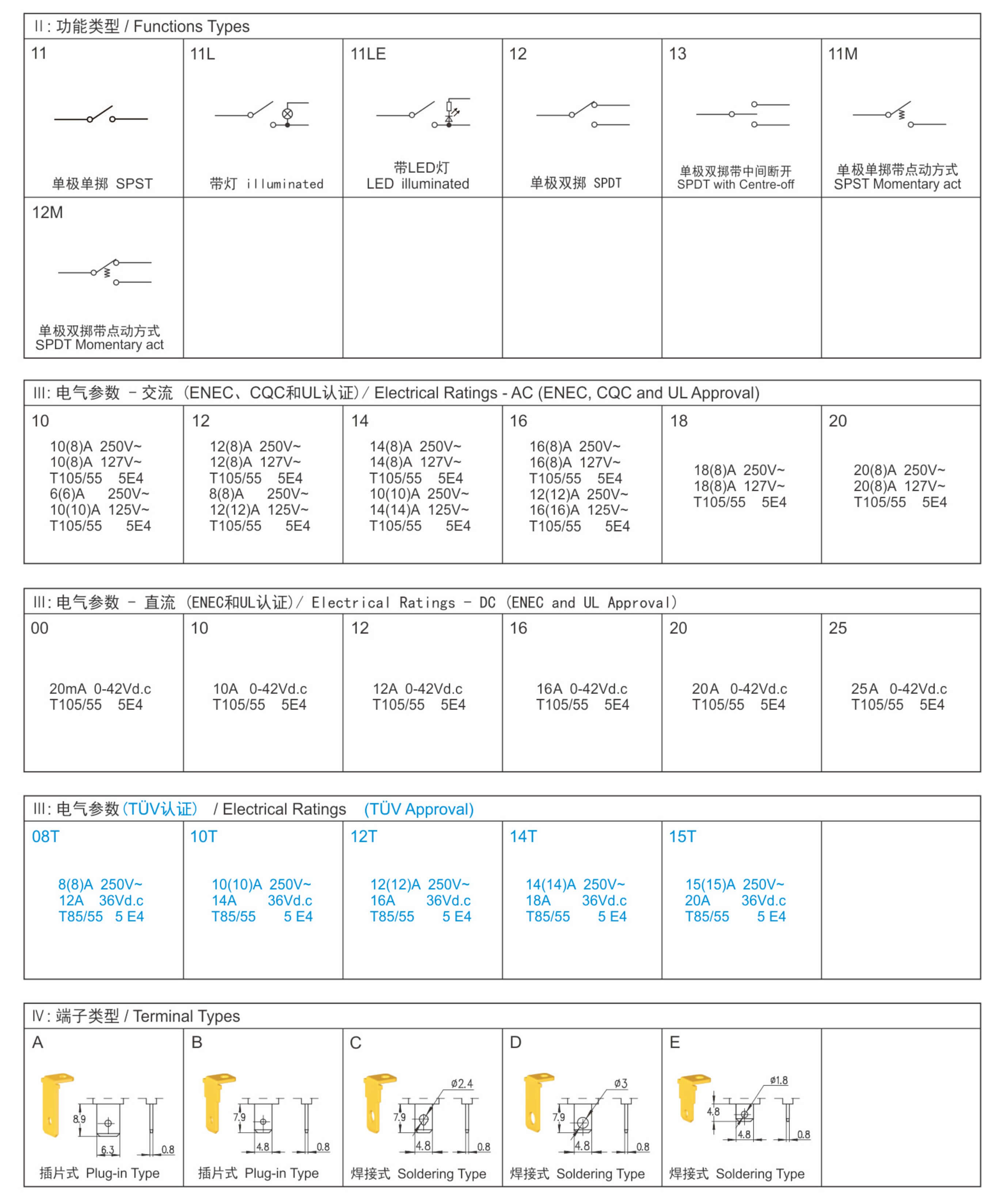

◆  Optional with the function as follows:

→  SPST (Single Pole Single Throw)

→  SPDT (Single Pole Double Throw)

→  SPDT with center off

→  Momentary act

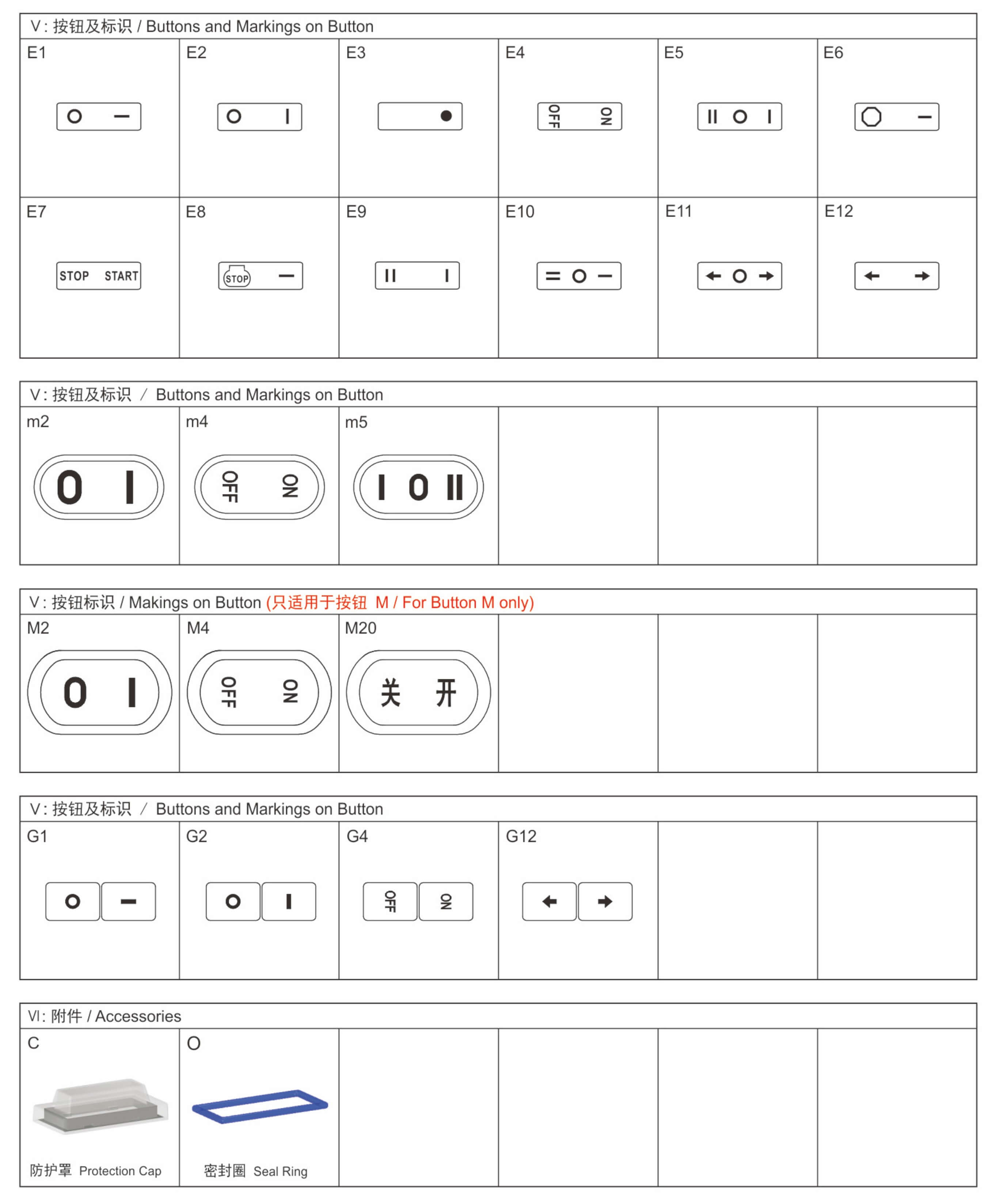

◆  Optional with the accessor as follows:

→  Protection Cap

→  Inner Dustproof Structure

→  Soldering with leads and terminals

◆  Input side/Output side:

→  Plug-in terminals 6.3×0.8mm

→  Plug-in terminals 4.8×0.8mm

→  Soldering terminals

→  PCB Soldering terminals

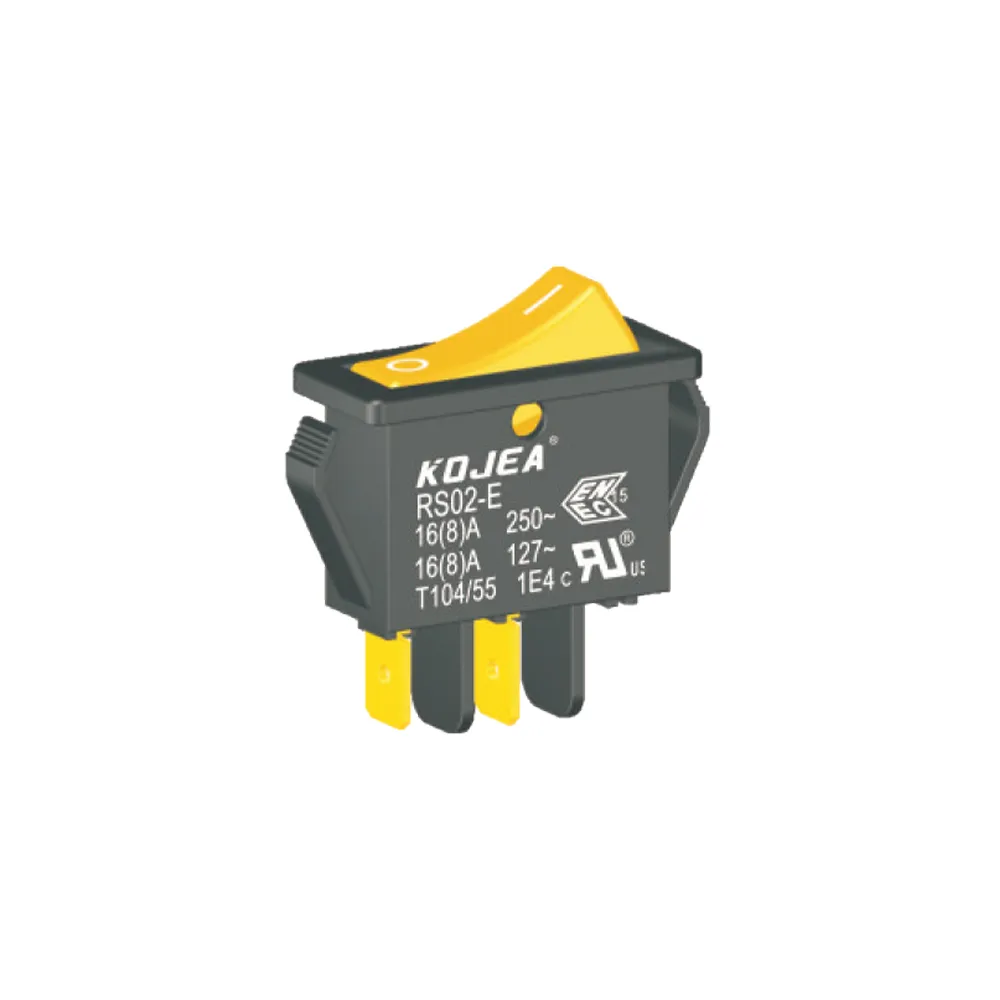

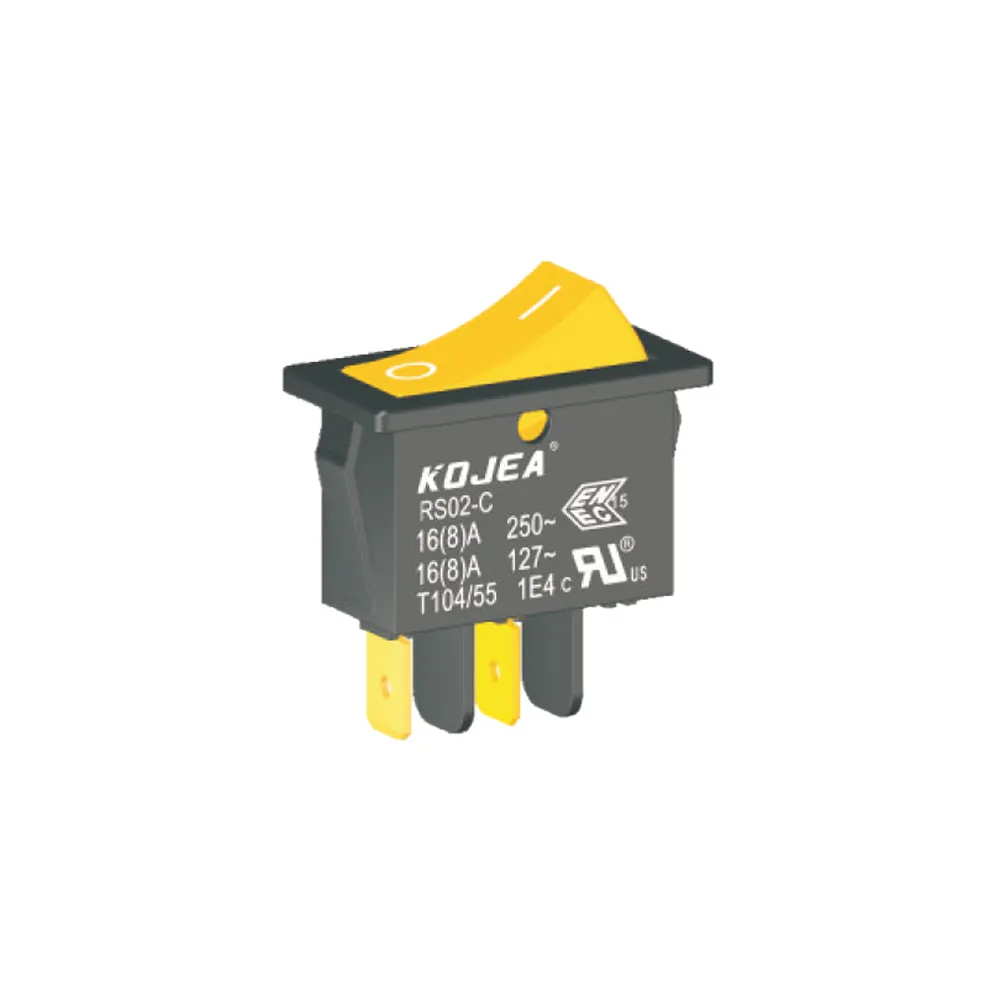

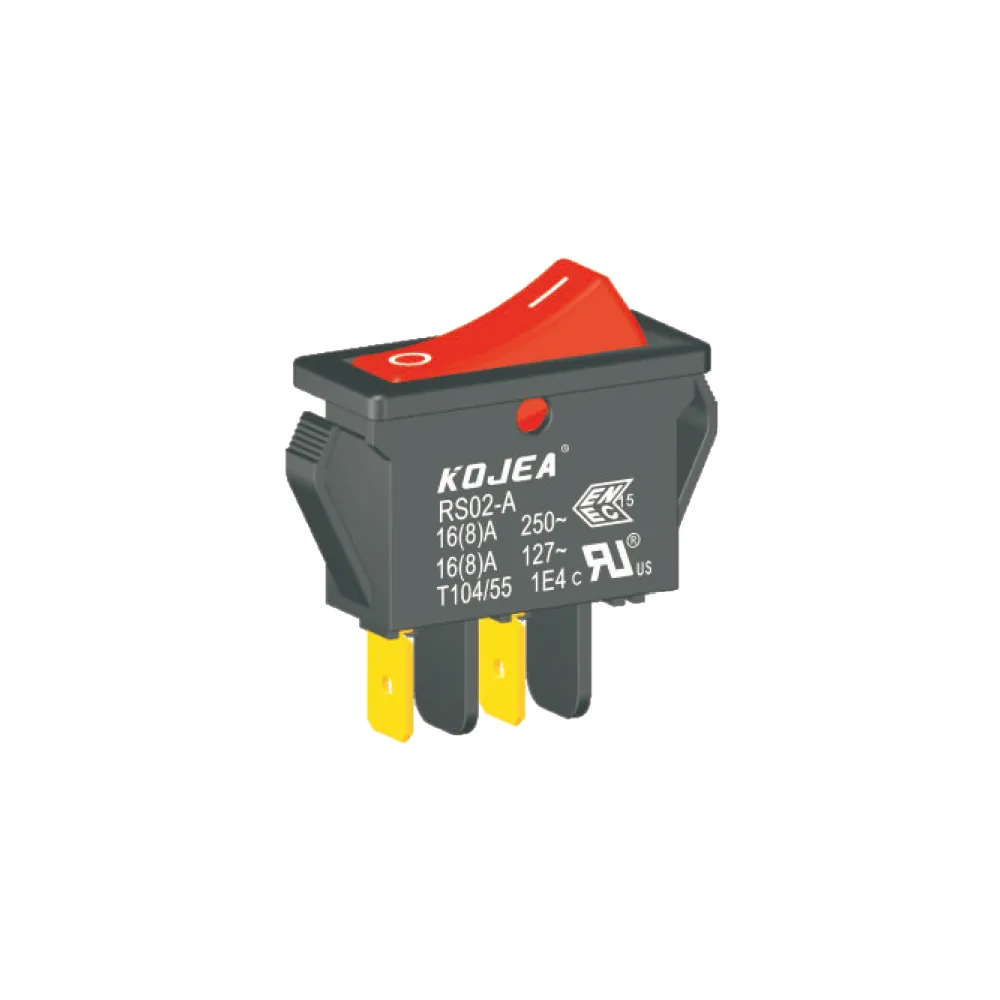

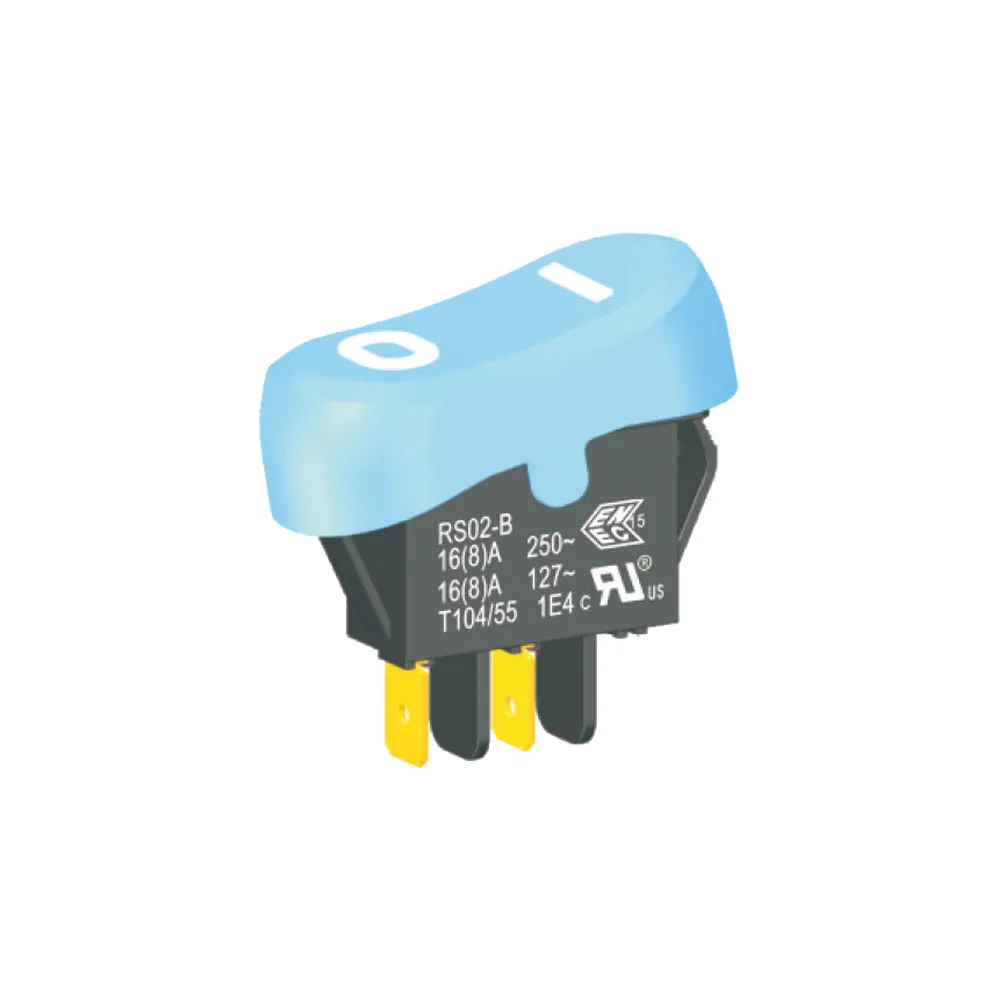

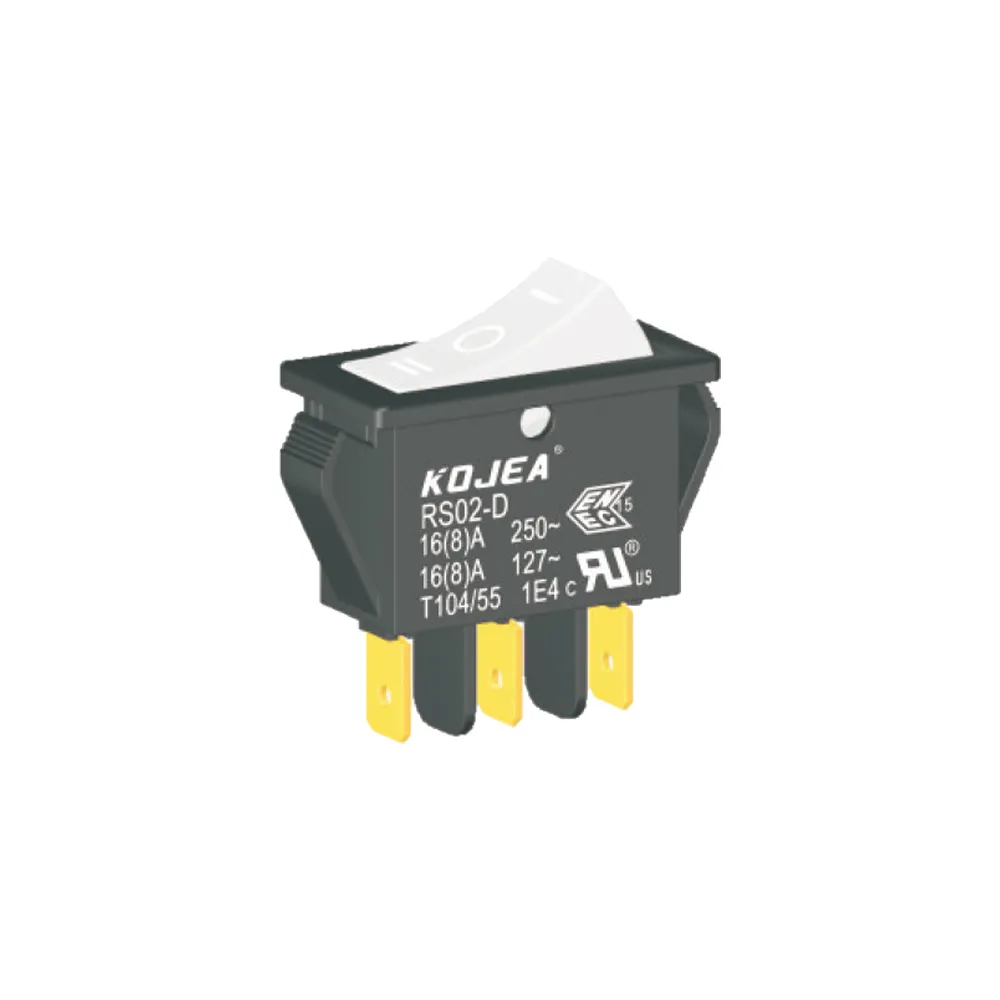

Power Tool Switch RS Series – RS02 Model Comprehensive Overview

Product Introduction

The RS02 series is a standard type rocker switch designed specifically for use in a wide range of small home appliances and office equipment. Built with reliability and versatility in mind, the RS02 is equipped with optional protective features including a Protection Cap for dustproof and waterproof performance or an inner dustproof structure to enhance durability. This makes it an ideal switching solution for devices regularly exposed to dust, moisture, or heavy use.

Commonly utilized in appliances such as heat guns, hair dryers, electric fans, printers, vacuum cleaners (dry and wet), and high-pressure washers, the RS02 series excels in environments where robust, user-friendly control is essential. Its flexibility and rugged construction meet the demands of both consumer and professional equipment markets.

Product Features

The RS02 rocker switch offers multiple switching functions, catering to various operational requirements:

• SPST (Single Pole Single Throw): Basic on/off control, ideal for simple switching tasks.

• SPDT (Single Pole Double Throw): Allows switching between two circuits, providing versatile control options.

• SPDT with center off: Includes a neutral position that turns off all circuits, adding precision and safety.

• Momentary action: The switch springs back to its original position after being pressed, useful for applications requiring temporary activation.

In addition to function versatility, the RS02 series provides several accessory options:

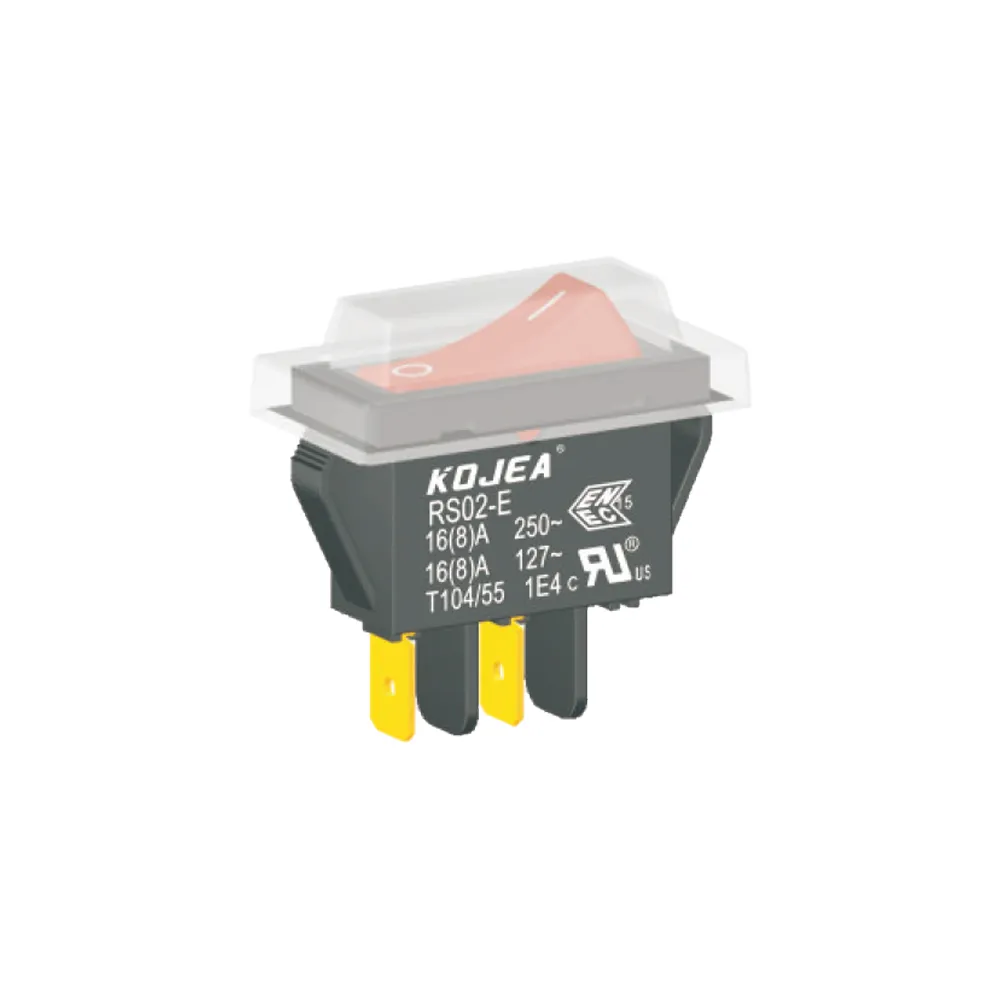

• Protection Cap: A cover that shields the switch actuator from dust and water ingress, extending switch lifespan and reliability.

• Inner Dustproof Structure: Built-in mechanisms that prevent dust from entering the switch housing, essential for maintaining smooth mechanical function over time.

• Soldering with leads and terminals: Supports flexible wiring configurations for various product designs and assembly processes.

Technical Specifications and Performance

The RS02 series stands out with its robust technical specifications that assure durability and safety:

• Mechanical life endurance: Rated between 50,000 to 100,000 cycles depending on configuration, supporting heavy-duty usage.

• Electrical life endurance: Also ranges from 50,000 to 100,000 electrical cycles under rated load, ensuring dependable operation over product lifetime.

• Maximum inrush current: Supports surges up to 48A or 72A at 250V AC, and 48A or 96A at 127V AC, making it capable of handling sudden current spikes during motor startups or similar loads.

• Contact resistance: Maintains low resistance of ≤30 milliohms, which minimizes heat generation and energy loss.

• Insulation resistance: Greater than or equal to 7 megaohms, providing strong insulation for user safety and device protection.

• Dielectric strength: 1500V for normal function and 3000V for reinforced insulation, safeguarding against electrical breakdowns.

• Operating temperature: Designed to function reliably within ambient temperatures from 0℃ up to 105℃ and actuator temperatures up to 55℃.

• Flammability rating: Uses UL 94V-0 certified materials, ensuring high flame retardancy for enhanced safety.

• Protection rating: IP40, providing resistance against dust particles larger than 1mm, suitable for most indoor appliance environments.

• Safety compliance: Suitable for protection class II appliances, meaning it incorporates double insulation for user protection without the need for grounding.

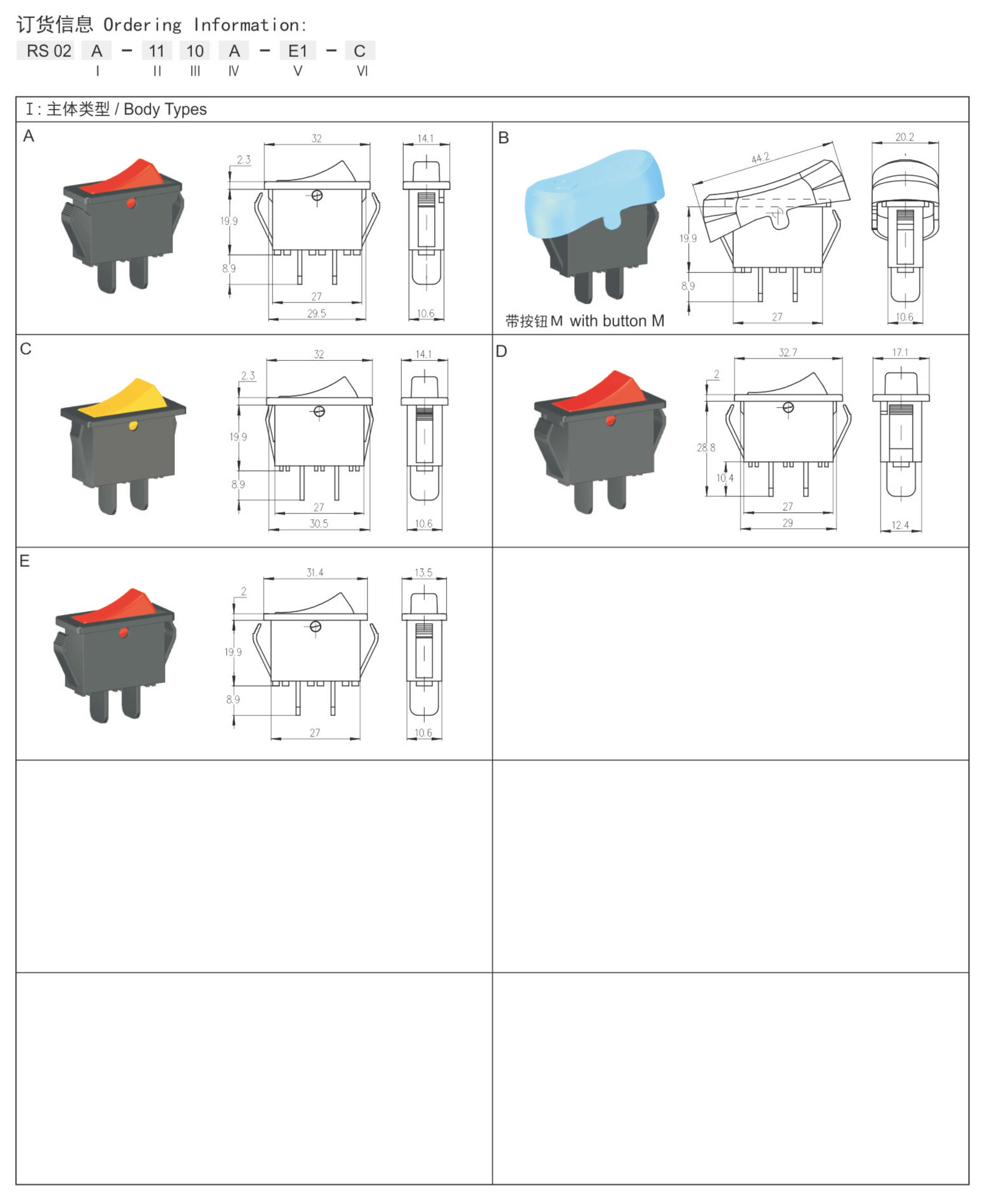

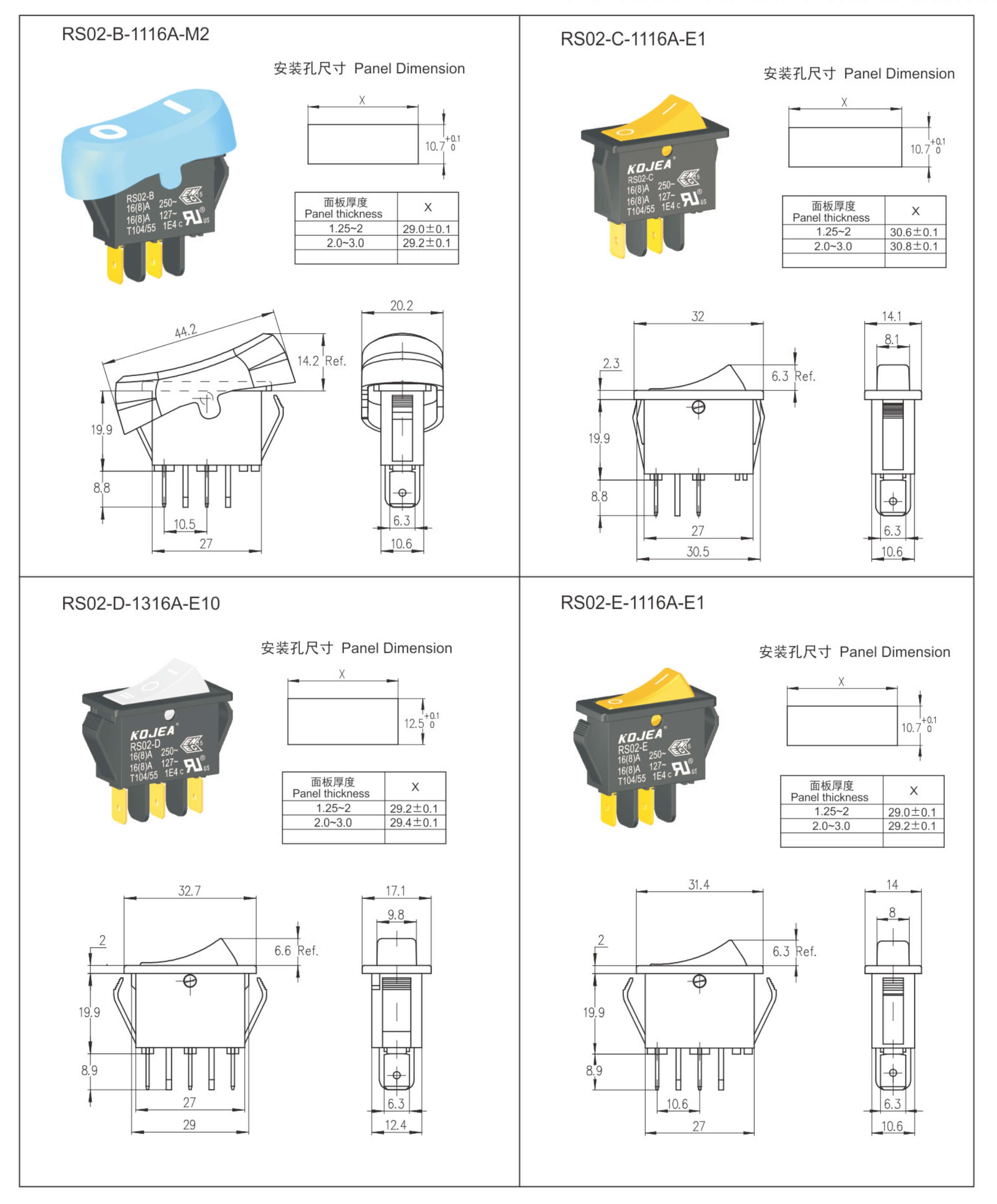

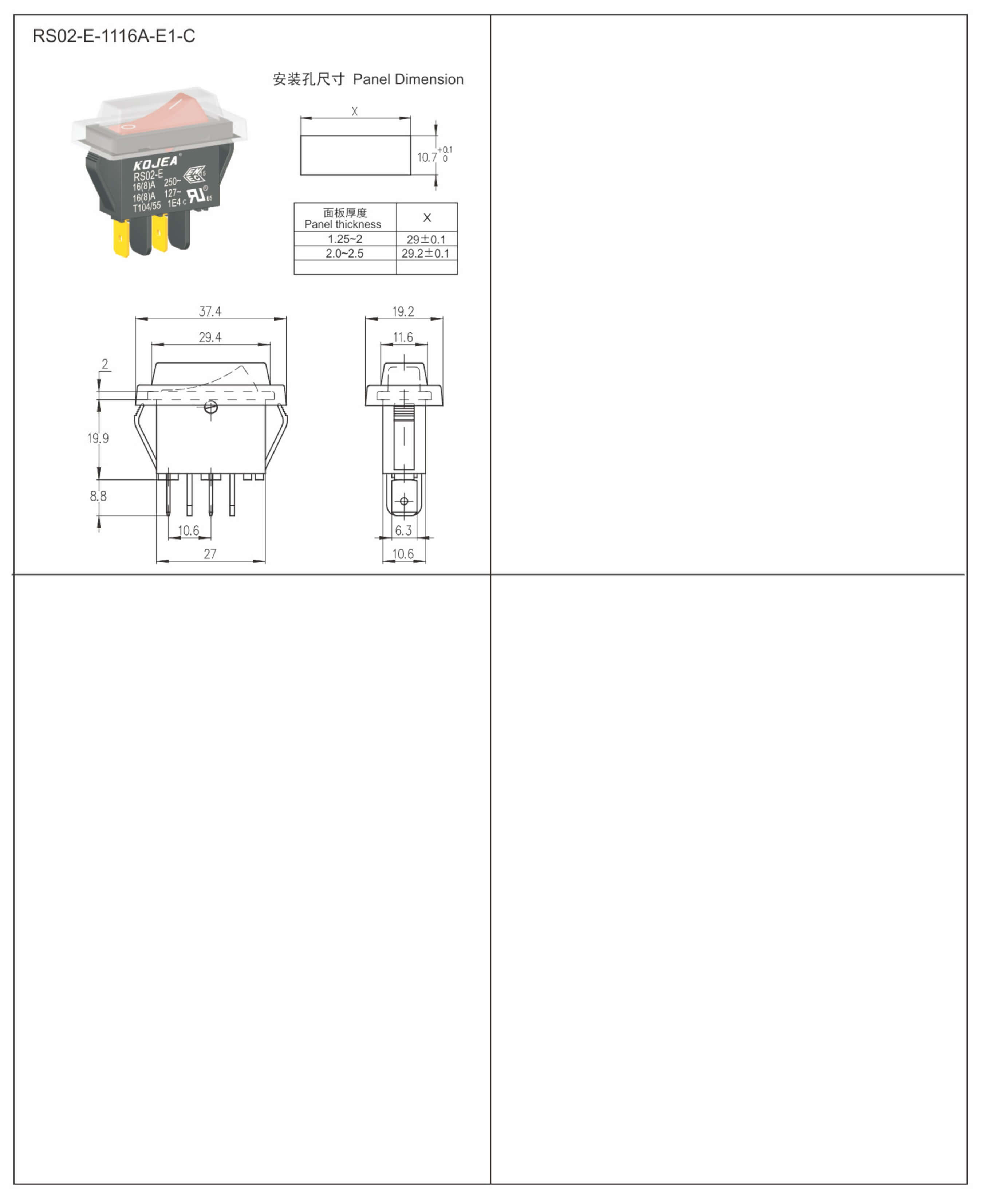

Terminal Types and Installation Options

The RS02 series is designed with diverse terminal types to accommodate a wide array of product assembly requirements:

• Plug-in terminals 6.3×0.8mm: Quick connect terminals enabling fast and efficient assembly and replacement.

• Plug-in terminals 4.8×0.8mm: Smaller quick-connect terminals for compact or lightweight designs.

• Soldering terminals: For permanent, reliable wiring connections in manufacturing.

• PCB soldering terminals: Allow direct mounting on printed circuit boards, optimizing compact and integrated device designs.

These terminal options provide manufacturers with flexible wiring and installation choices, improving compatibility with different products and assembly processes.

Application Scenarios

1. Small Home Appliances

RS02 switches are ideal for household devices such as heat guns, hair dryers, electric fans, and vacuum cleaners. Their dustproof features and robust design ensure reliable switching performance in everyday use where exposure to dust and moisture is common. The ability to handle significant inrush currents makes them well-suited for appliances with motor-driven components.

2. Office Equipment

The RS02 is also commonly used in office devices such as printers and other electronic equipment that require dependable user controls. Its safety certifications and durable construction make it a reliable choice in environments demanding consistent performance over extended periods.

3. Wet and Dry Vacuum Cleaners and High-Pressure Washers

For more demanding applications like wet and dry vacuum cleaners or high-pressure washers, the RS02’s optional protection cap and inner dustproof design provide extra reliability and protection against moisture and dust ingress, ensuring switch longevity in harsher environments.

Advantages and Key Benefits

• Versatility: Multiple switching functions and terminal types cater to a broad spectrum of device requirements.

• Durability: Long mechanical and electrical life endurance ensures consistent performance even with frequent use.

• Environmental Resistance: Optional dustproof and waterproof features protect the switch in dusty or damp settings.

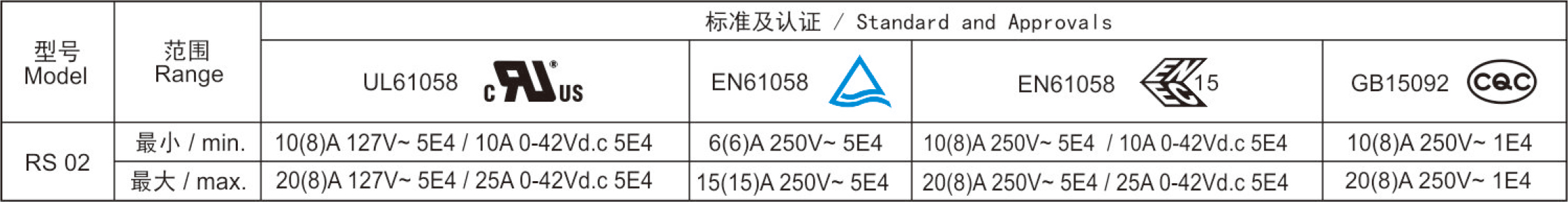

• Safety: Compliance with Class II appliance standards and UL flame retardancy certifications guarantees user protection.

• Ease of Installation: Variety of terminals simplify integration into different products and streamline assembly.

Frequently Asked Questions (FAQ)

Q1: What is the function of the Protection Cap?
The Protection Cap acts as a shield over the switch’s actuator, preventing dust and water from entering the switch mechanism. This extends the switch’s operational life, especially in environments prone to contamination.

Q2: Can the RS02 switch handle high startup currents?
Yes, the RS02 series is rated to handle inrush currents up to 72A at 250V and 96A at 127V, allowing it to manage the brief electrical surges typical in motor-driven appliances.

Q3: What does the momentary action function do?
Momentary action means the switch returns to its default position after being pressed. It is useful for applications requiring temporary control, such as a reset button or trigger.

Q4: How do I decide between plug-in terminals and soldering terminals?
Plug-in terminals enable quick and easy connections, useful for devices requiring frequent servicing or assembly line speed. Soldering terminals offer a more secure and permanent electrical connection.

Q5: Is the RS02 switch suitable for outdoor use?
The RS02’s protection rating is IP40, which provides dust protection but limited water resistance. It is generally recommended for indoor use or within enclosures that provide additional water protection.

Maintenance and Best Practices

• Periodic Cleaning: Remove accumulated dust with dry air or soft brushes to maintain switch performance.

• Inspection: Regularly check terminals and actuator for signs of wear or damage.

• Proper Installation: Ensure firm connections on terminals to avoid loose contacts, which can cause overheating or arcing.

• Avoid Exceeding Ratings: Operate the switch within specified current and voltage limits to maximize lifespan.

Conclusion

The RS02 rocker switch from the RS Series offers a highly adaptable and reliable solution for switching needs in small home appliances and office equipment. Its range of protective features, versatile switching functions, and multiple terminal options make it an excellent choice for manufacturers looking to balance performance, safety, and ease of integration. Whether used in everyday household gadgets or more demanding office and cleaning equipment, the RS02 ensures dependable operation and user safety over the product’s lifetime.
