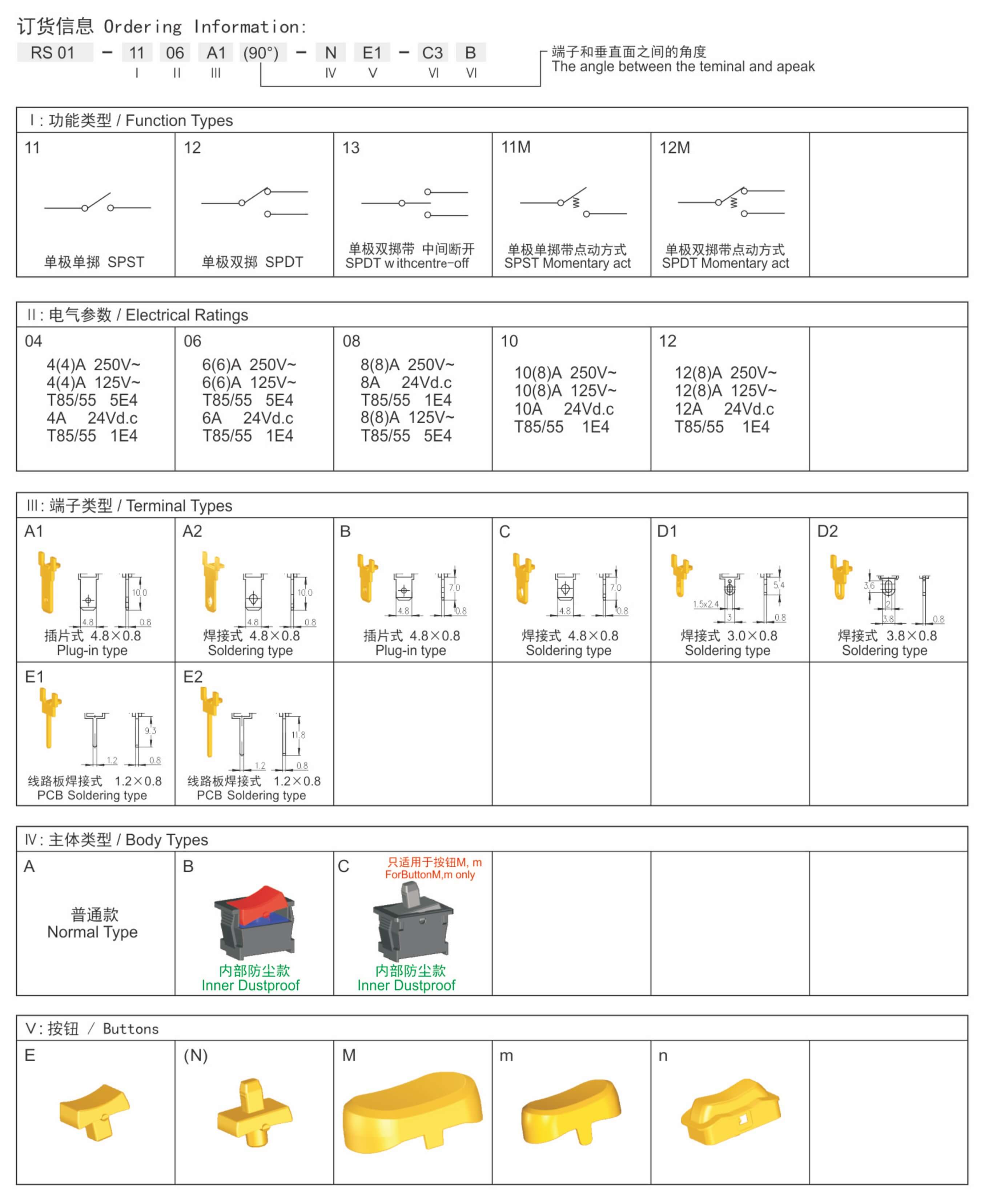

◆  Optional with the function as follows:

→  SPST (Single Pole Single Throw)

→  SPDT (Single Pole Double Throw)

→  SPDT with center off

→  Momentary act

◆  Optional with the accessor as follows:

→  Protection Cap

→  Inner Dustproof Structure

→  Soldering with leads and terminals

◆  Input side/Output side:

→  Plug-in terminals 4.8×0.8mm

→  Soldering terminals

→  PCB Soldering terminals

Power Tool Switch RS Series – RS01 Model Comprehensive Overview

Product Introduction

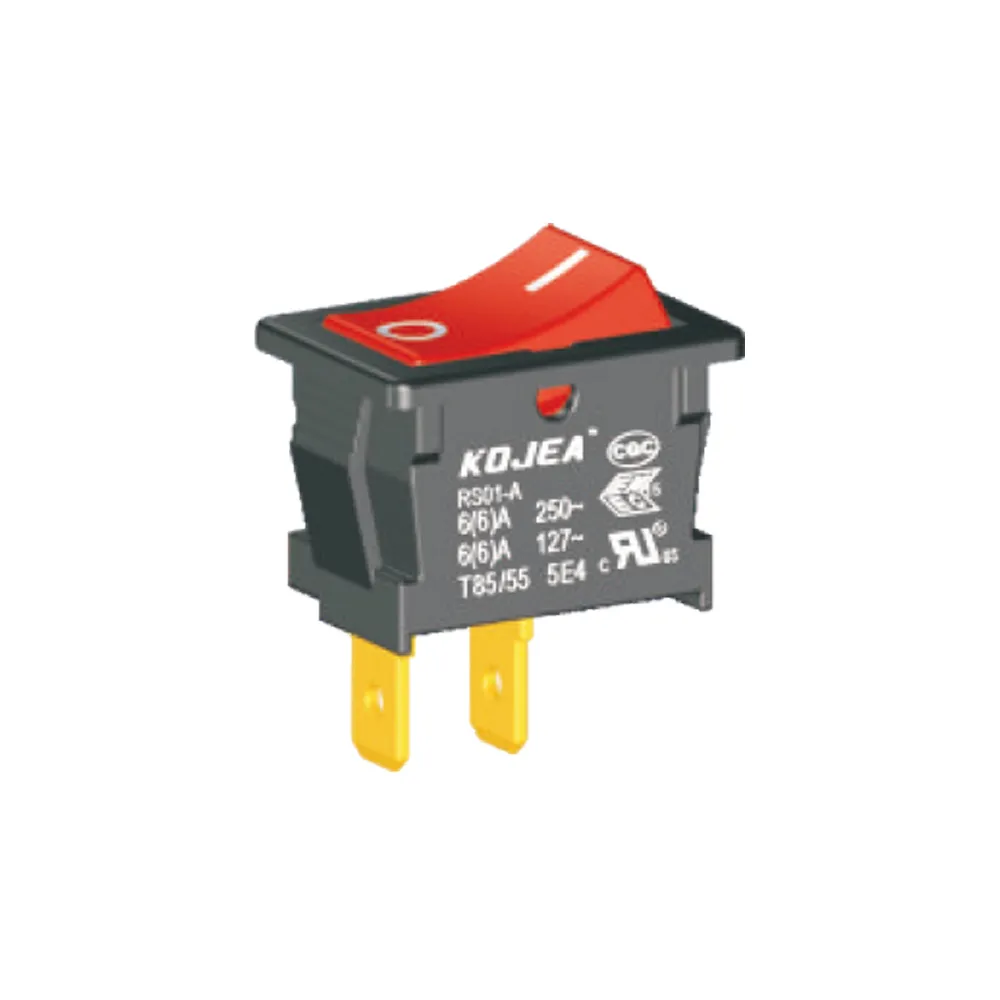

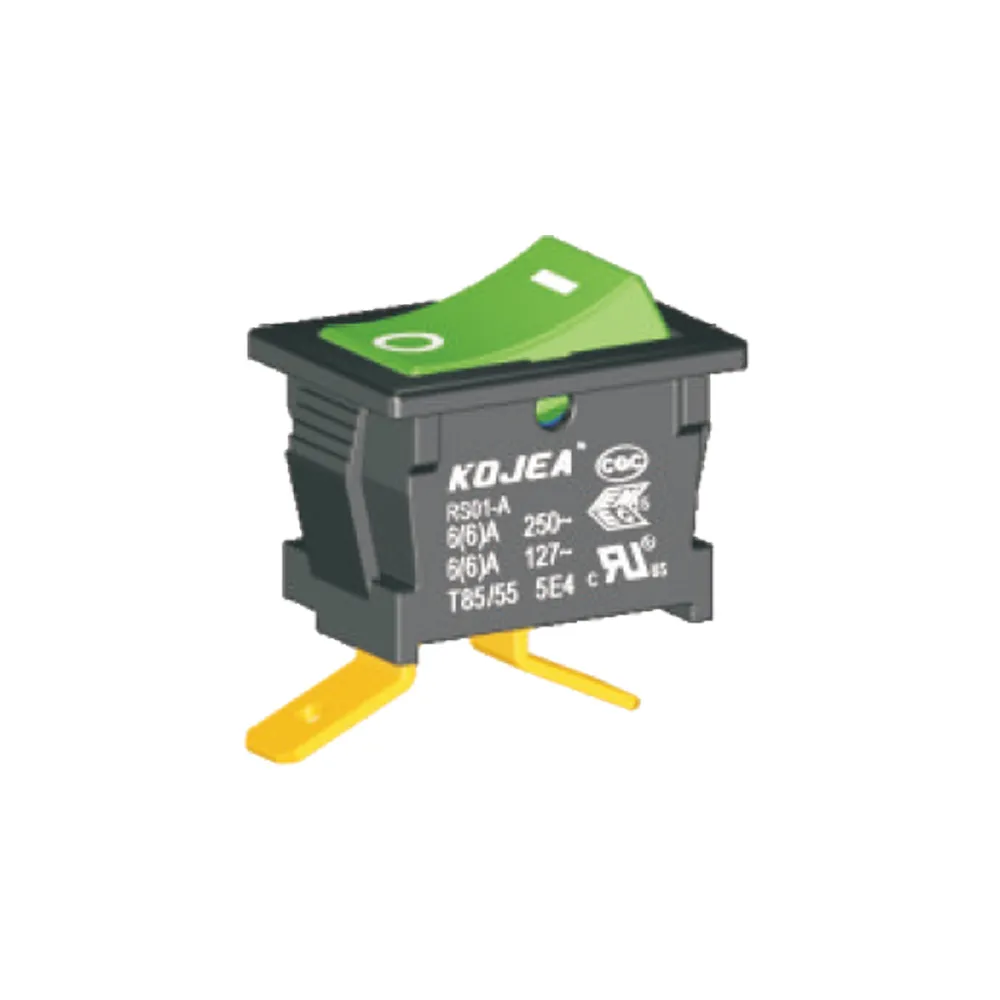

The RS01 series represents a standard type of rocker switch designed for versatile applications across portable power tools and small home appliances. Engineered with options for enhanced protection, such as a Protection Cap for dustproof and waterproof capabilities or an internal dustproof structure, the RS01 switch ensures reliable operation even in challenging environments.

This switch is widely used in portable power tools including hand sanders, die grinders, electric nailers, and laser actuators, where compactness and durability are critical. Beyond tools, it is equally suited for small home and office appliances such as reading lamps, electric fans, printers, game players, computer power supplies, and power sound boxes. This breadth of application underlines the RS01’s adaptability and robustness in various electrical and mechanical settings.

Product Features

The RS01 series offers a range of switching functions to meet diverse operational needs:

• SPST (Single Pole Single Throw): The most basic on/off functionality, suitable for simple control circuits.

• SPDT (Single Pole Double Throw): Enables toggling between two circuits or states.

• SPDT with center off: Provides a neutral position, adding an extra level of control by allowing the switch to rest in an off state between two active positions.

• Momentary action: The switch returns to its original position when released, ideal for applications requiring momentary activation such as triggers or pulses.

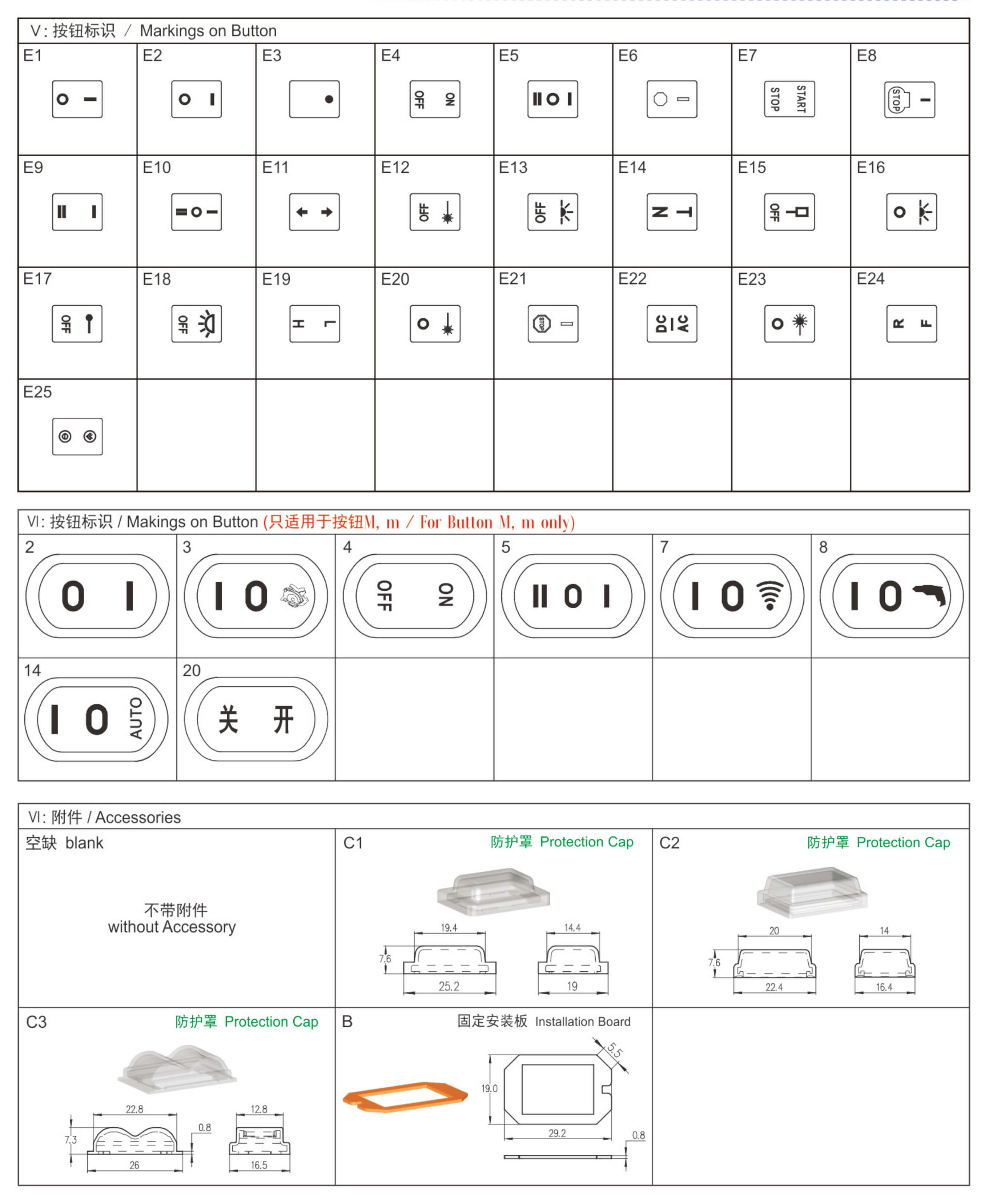

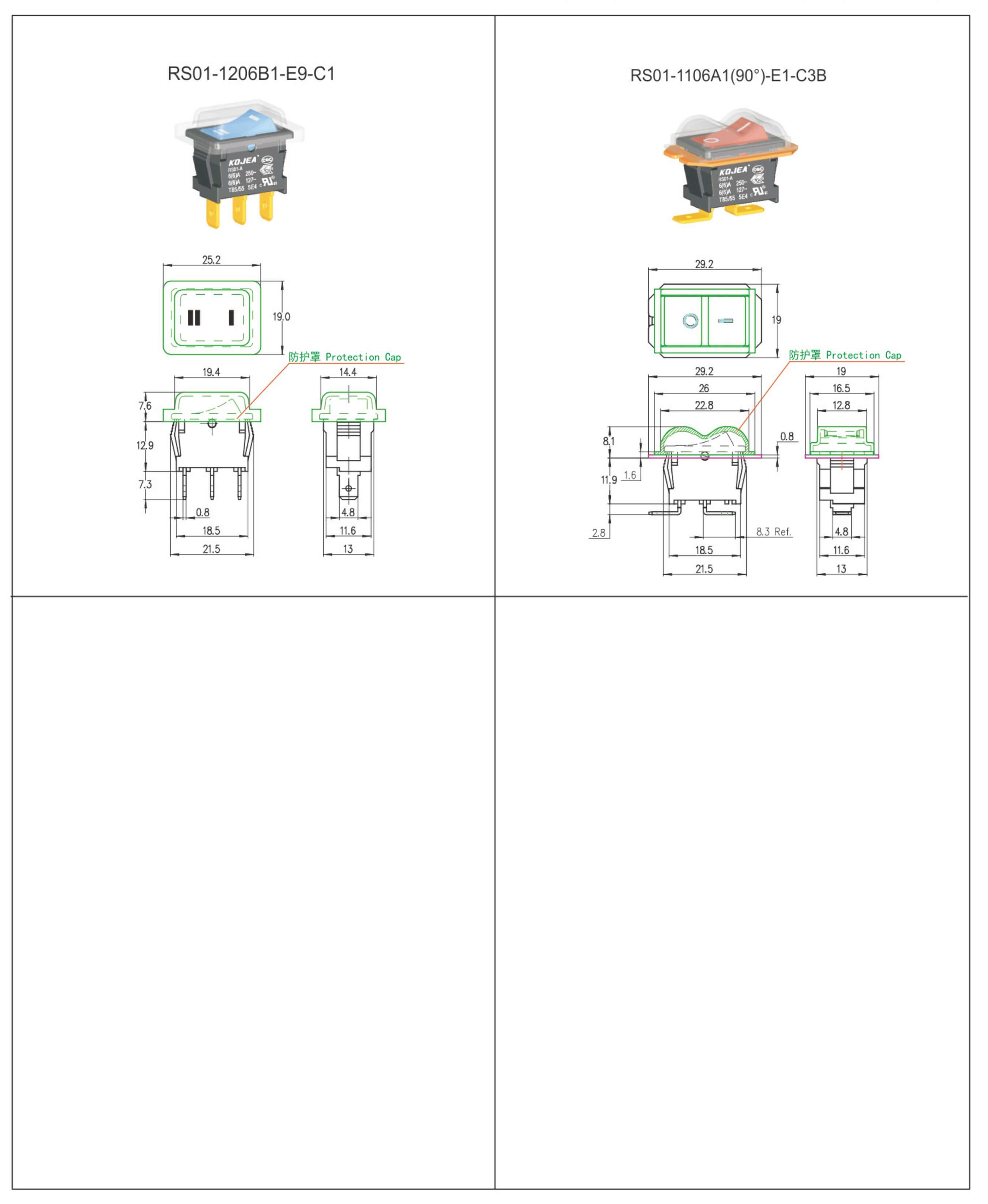

Protection and customization options further enhance the RS01 switch:

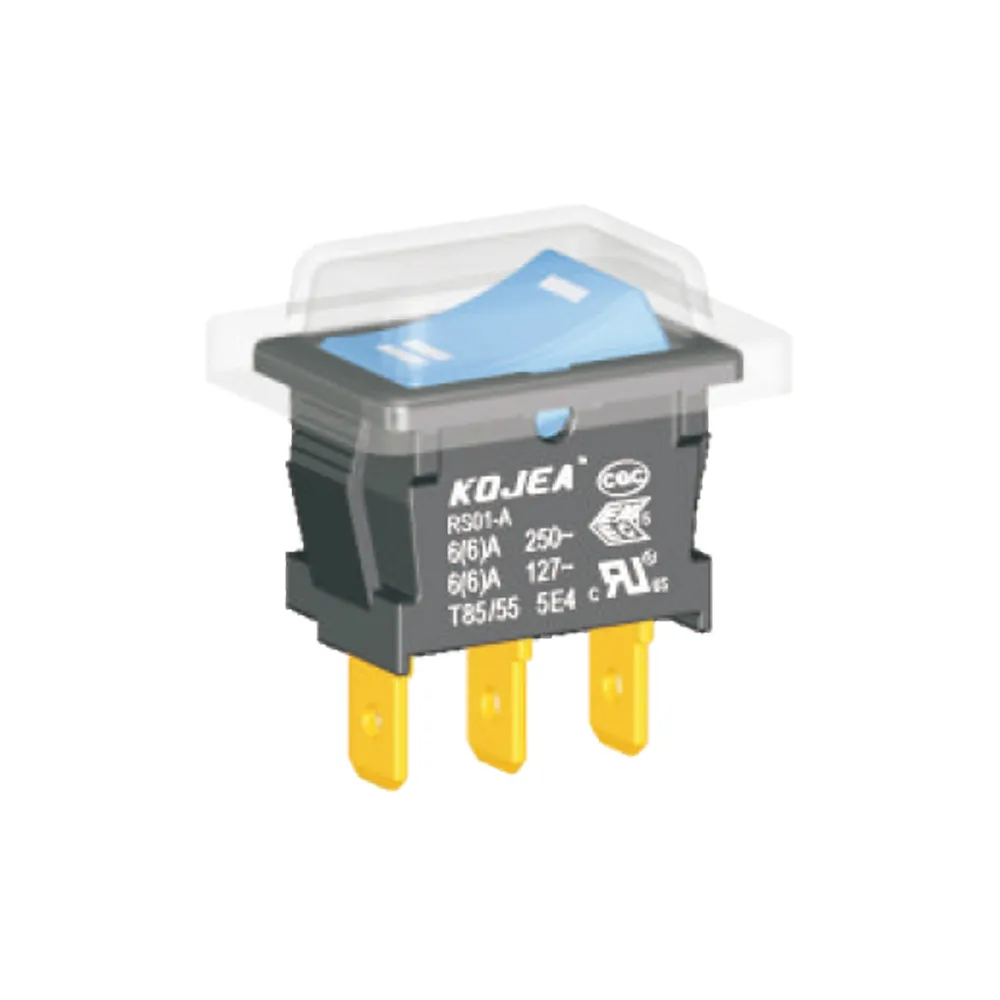

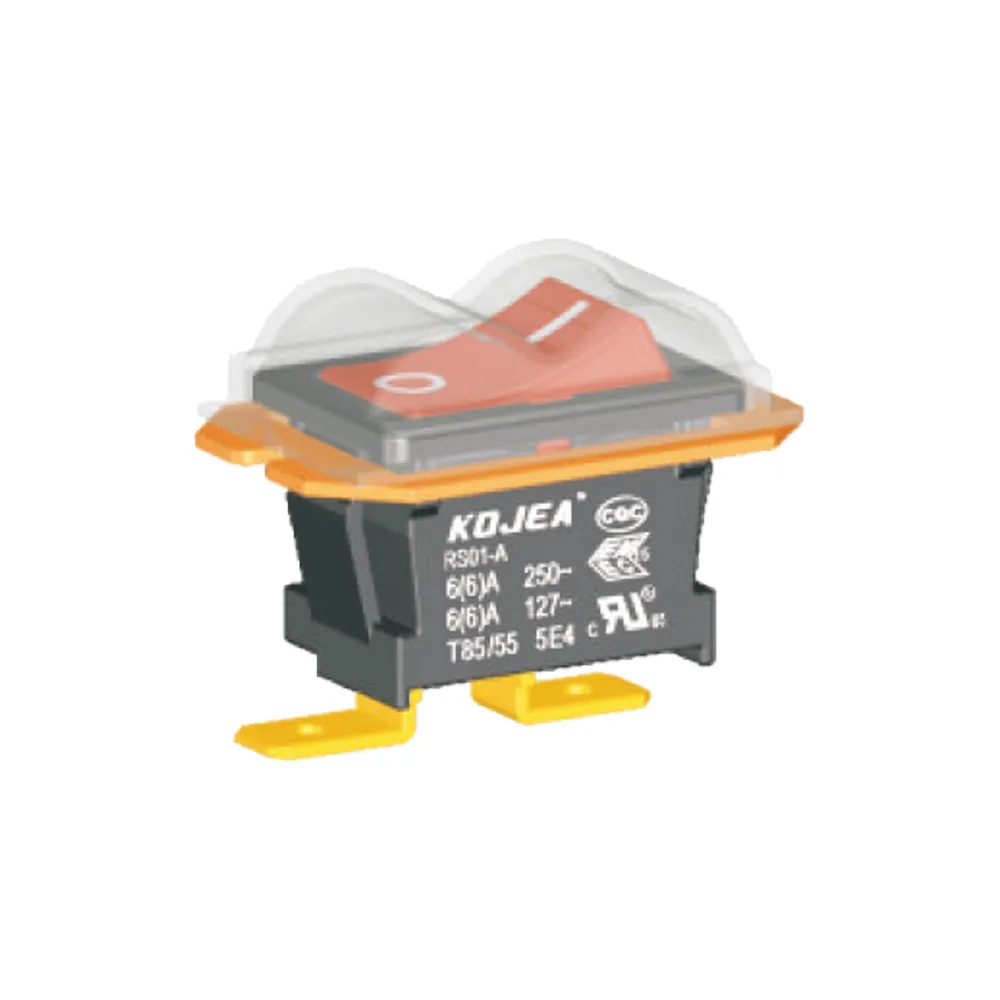

• Protection Cap: An external cover that shields the switch from dust and moisture ingress, expanding its usability in harsher environments.

• Inner Dustproof Structure: Built-in mechanisms inside the switch housing to prevent dust penetration, contributing to longer switch life and stable performance.

• Soldering with leads and terminals: Facilitates flexible wiring and installation methods for different product assembly requirements.

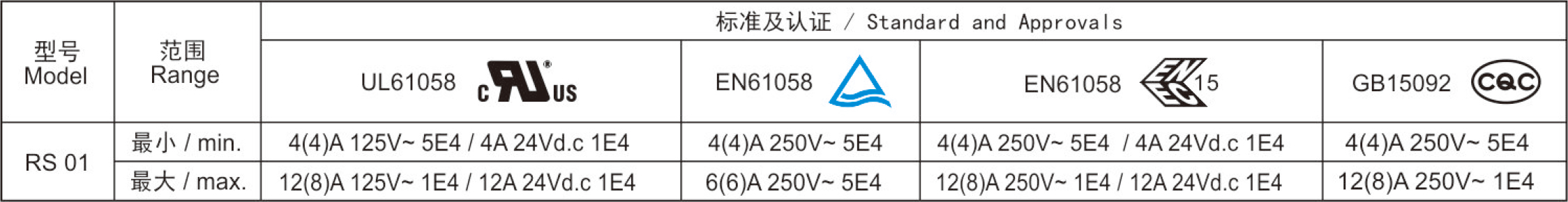

Technical Specifications and Performance

The RS01 series delivers strong mechanical and electrical endurance to meet industrial and consumer product demands:

• Mechanical life endurance: Rated for at least 50,000 cycles and up to 100,000 cycles in some configurations, the switch withstands frequent use without failure.

• Electrical life endurance: Supports 10,000 to 50,000 electrical switching cycles under rated load, ensuring reliable current switching over time.

• Maximum inrush current: Capable of handling surges up to 48A at both 250V and 125V AC, allowing it to manage momentary electrical spikes safely.

• Contact resistance: Maintains low resistance (≤30 milliohms), minimizing energy loss and heat generation.

• Insulation resistance: High insulation resistance (≥7 megaohms) ensures user safety and component integrity.

• Dielectric strength: Tested to 1500V for function and 3000V for reinforced insulation, protecting against electrical breakdown.

• Operating temperature range: Suitable for ambient temperatures between 0℃ and 85℃, and actuator temperature rated up to 55℃, making it compatible with various environmental conditions.

• Flammability: Constructed with UL 94V-0 rated materials, offering excellent flame retardancy.

• Protection rating: IP40, providing reliable protection against solid particles larger than 1mm, typical in workshop or household settings.

• Safety: Designed for appliances of protection class II, ensuring double insulation and eliminating the need for grounding.

Terminal Types and Installation

The RS01 series offers multiple terminal configurations to suit different assembly and wiring needs:

• Plug-in terminals (4.8×0.8mm): Quick-connect style terminals facilitate rapid assembly and replacement.

• Soldering terminals: Traditional terminals for secure, permanent wire connections.

• PCB soldering terminals: Designed for direct mounting on printed circuit boards, enabling compact, integrated product designs.

This versatility ensures manufacturers can easily incorporate the RS01 switch into a broad range of products and tailor the connection method to their production process.

Application Scenarios

1. Portable Power Tools

The RS01’s robust construction and optional dustproof features make it an ideal choice for portable power tools such as hand sanders, die grinders, electric nailers, and laser actuators. Its ability to handle moderate inrush currents and resist dust ingress means consistent performance even under tough workshop conditions.

2. Small Home Appliances

From reading lamps and electric fans to power sound boxes and printers, the RS01 switch ensures dependable on/off control in household electronics. Its compact size and varied terminal options facilitate easy integration into appliances where space and user-friendliness are important.

3. Office Equipment

The switch’s reliable mechanical and electrical performance, combined with its flame-retardant housing, suits office equipment like computer power supplies and game players. The IP40 rating is sufficient for typical office environments, where dust and moisture levels are low but protection remains necessary.

Benefits and Key Advantages

• Durability: High mechanical and electrical life ratings guarantee longevity even with frequent switching.

• Safety: Double insulation and flame-retardant materials minimize electrical hazards.

• Environmental resistance: Dustproof and waterproof options help extend switch life in dusty or humid environments.

• Flexibility: Multiple switching functions and terminal types adapt to a wide range of product designs.

• User safety: Optional protection caps prevent accidental contact and increase switch reliability.

Frequently Asked Questions (FAQ)

Q1: How does the protection cap improve switch performance?
The protection cap seals the switch’s actuator from external dust and moisture, reducing the risk of mechanical failure and electrical shorts, especially in industrial or dusty environments.

Q2: Can the RS01 switch be used outdoors?
While the RS01 has dustproof features and an IP40 rating, it is not fully waterproof for outdoor use where water exposure is significant. For outdoor applications, additional housing or higher IP-rated switches are recommended.

Q3: What does momentary action mean and where is it used?
Momentary action means the switch returns to its original position when released. This is used in applications requiring temporary activation, such as triggers or control buttons.

Q4: How do I choose between plug-in, soldering, or PCB terminals?
Plug-in terminals allow quick assembly and replacement, soldering terminals provide a secure, fixed connection, and PCB terminals are ideal for circuit board mounting. Choice depends on your manufacturing process and product design.

Q5: What safety standards does RS01 comply with?
The RS01 is designed for Class II appliances with double insulation and flame-retardant materials certified to UL 94V-0 standards, ensuring safety and reliability.

Maintenance and Best Practices

• Regular inspection: Check for dust buildup and signs of wear, especially in dusty or high-use environments.

• Cleaning: Use dry cloths or gentle air pressure to clear dust without moisture exposure.

• Proper installation: Ensure terminals are securely connected to prevent loose contacts that may cause arcing or overheating.

• Avoid overload: Do not exceed specified inrush current or voltage ratings to maintain switch integrity.

Conclusion

The RS01 rocker switch from the RS Series offers a well-rounded solution for portable power tools and small appliances requiring reliable, durable, and safe switching capabilities. Its optional protection features, multiple switching configurations, and versatile terminal options provide flexibility for a wide variety of applications. Whether used in demanding workshop tools or household electronics, the RS01 switch delivers performance and safety that manufacturers and end-users can trust.
