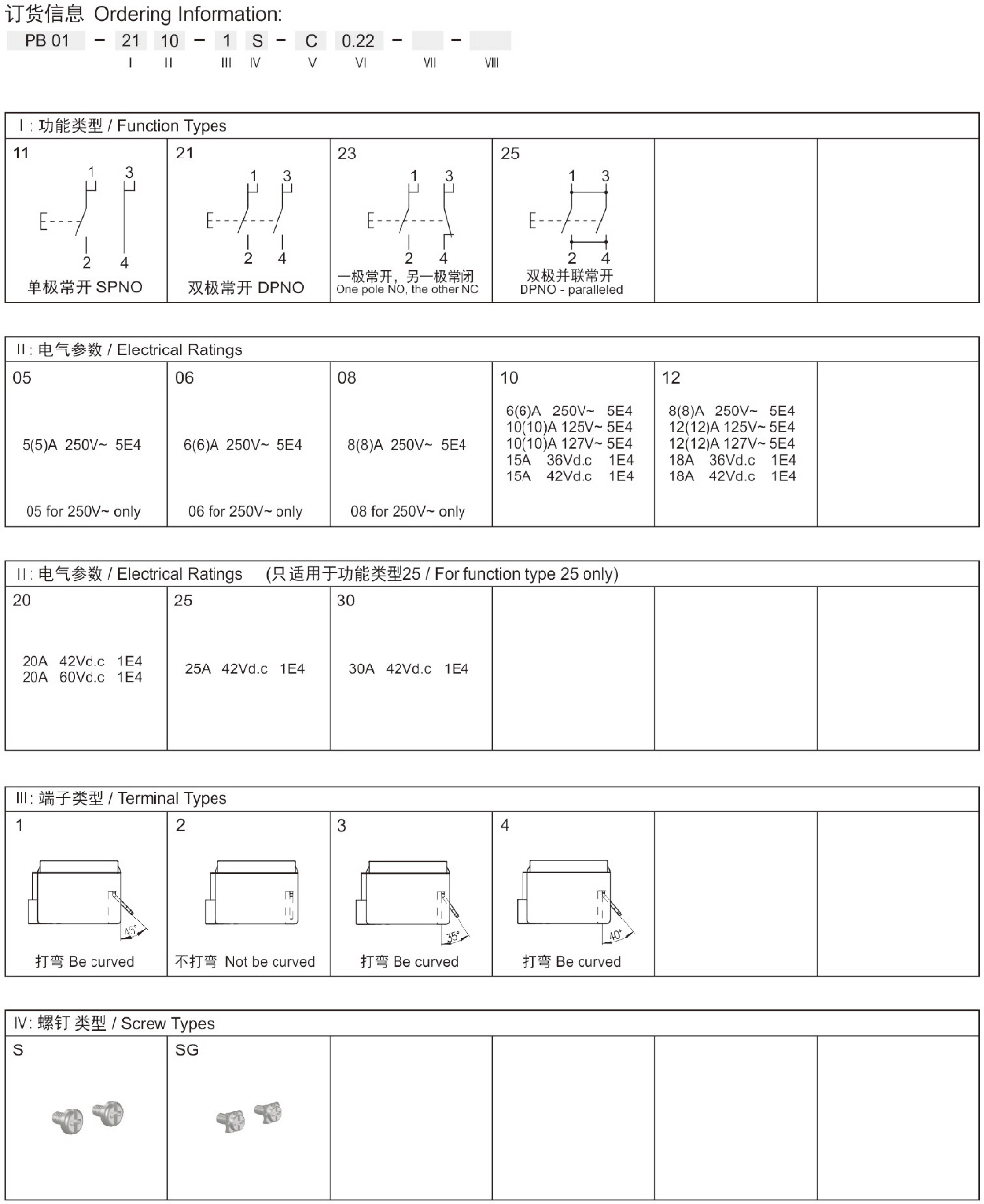

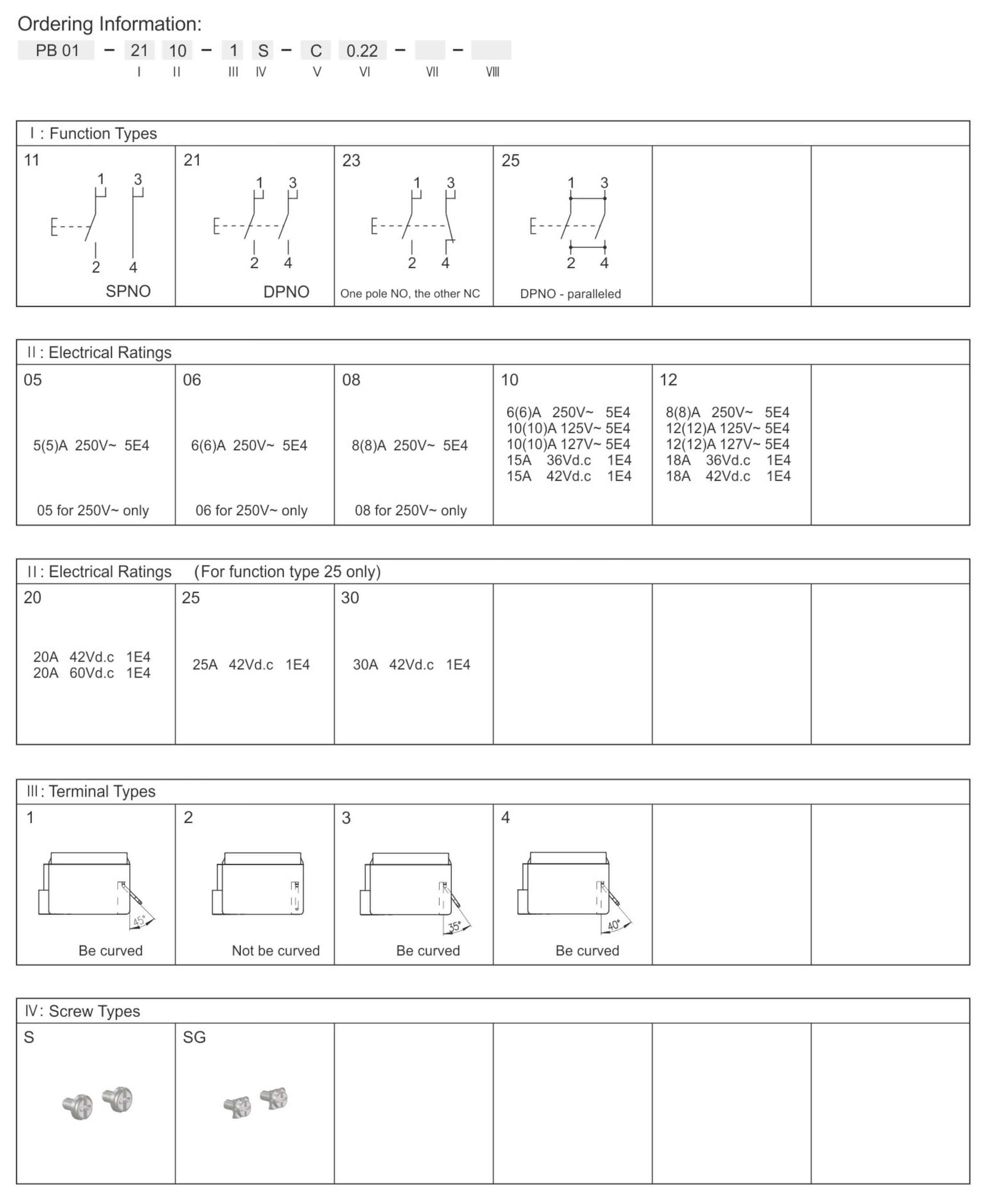

◆  Optional with the function as follows:

→  SPNO(Single Pole Normally Open)

→  DPNO(Double Pole Normally Open)

→  DPNOP(Double Pole Normally Open Paralleled)

→  One Pole Normally Open, the other Normally Close

◆  Optional with the accessor as follows:

→  Suppression capacitor (commonly 0.22 or 0.33μF)

◆  Input side:

→  Screw terminals M3.5

◆  Output side:

→  Plug-in terminals 2.8×0.8mm

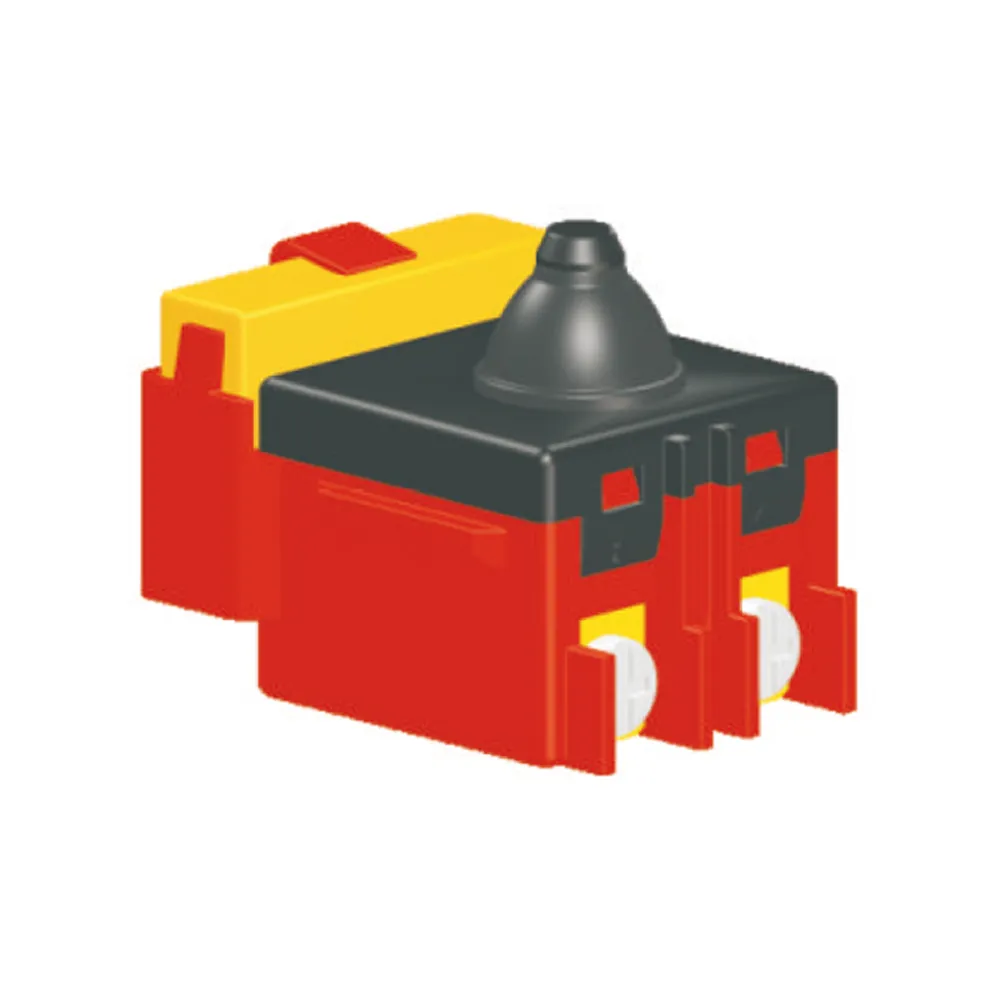

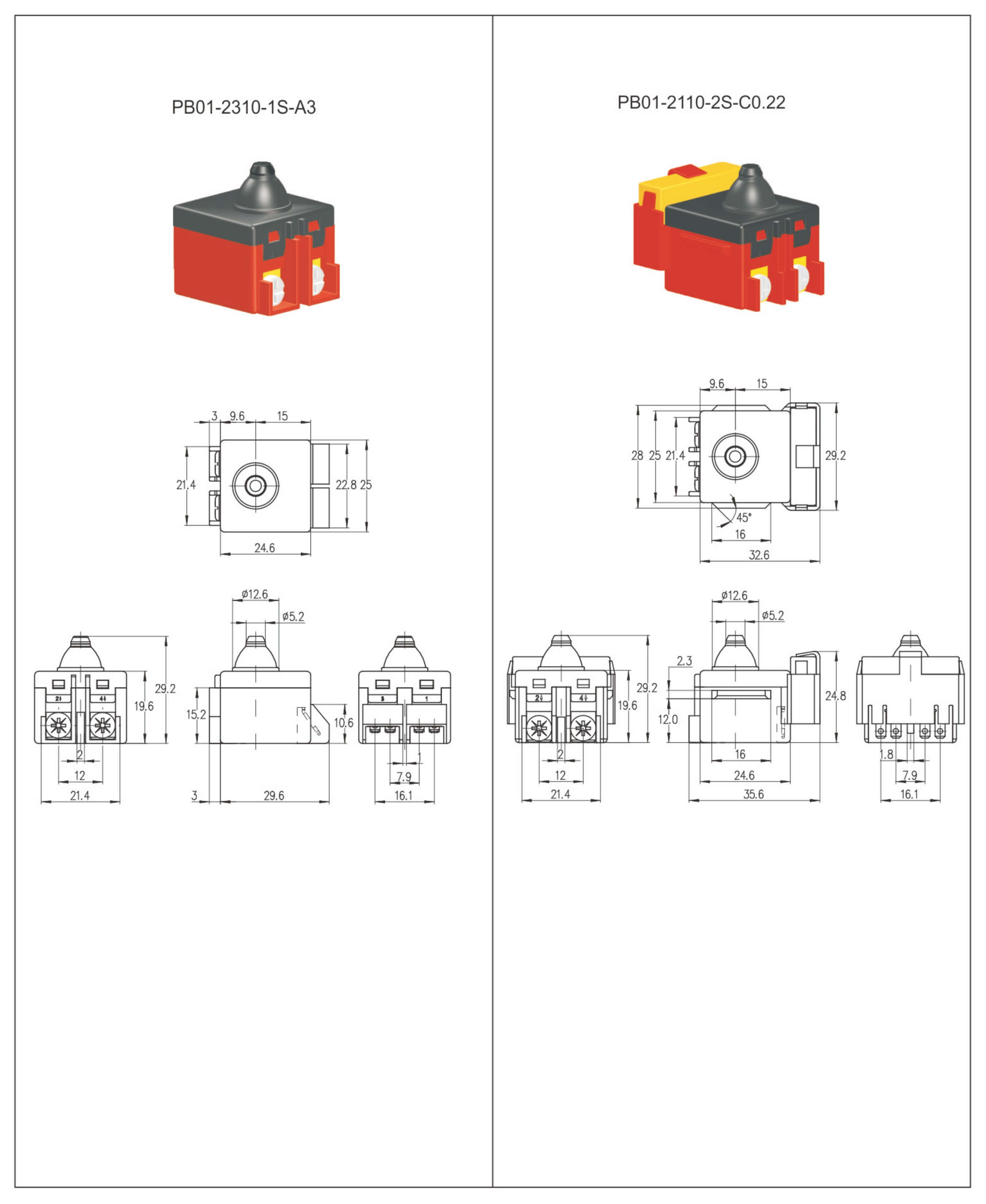

Power Tool Switch PB Series PB01: Comprehensive Guide

The PB01 series push-button switches represent a robust and versatile solution for modern power tool designs. Engineered for reliability in harsh environments, particularly heavy-dust work conditions, these switches are widely adopted in various industrial-grade tools. Whether in a factory, workshop, or on-site construction work, the PB01 series delivers performance, durability, and adaptability.

Product Overview

The PB01 series push-button switches are general-type switches integrated with dustproof capabilities, making them ideal for environments with airborne debris. Designed to meet the needs of portable, heavy-dust power tools, these switches provide consistent performance under rigorous conditions.

Key Specifications:

• Electrical Configuration: Available in SPNO, DPNO, DPNOP, and one-pole NO with the other NC options.

• Dustproof Design: Ensures long-term functionality in dust-heavy applications.

• Endurance:

• Mechanical Life: ≥1E5 cycles

• Electrical Life: ≥5E4 cycles

• Inrush Current Handling:

• At 250V: Up to 48A

• At 127V: Up to 72A

• Contact Resistance: ≤30mΩ

• Insulation Resistance: ≥7MΩ

• Dielectric Strength:

• Function: 1500V

• Reinforced: 3000V

• Operating Temperature: 0℃ to 55℃

• Flammability Rating: UL 94V-0

• Protection Rating: IP40

• Applicable for Class II Appliances

Terminals:

• Input Side: Screw terminals (M3.5)

• Output Side: Plug-in terminals (2.8×0.8mm)

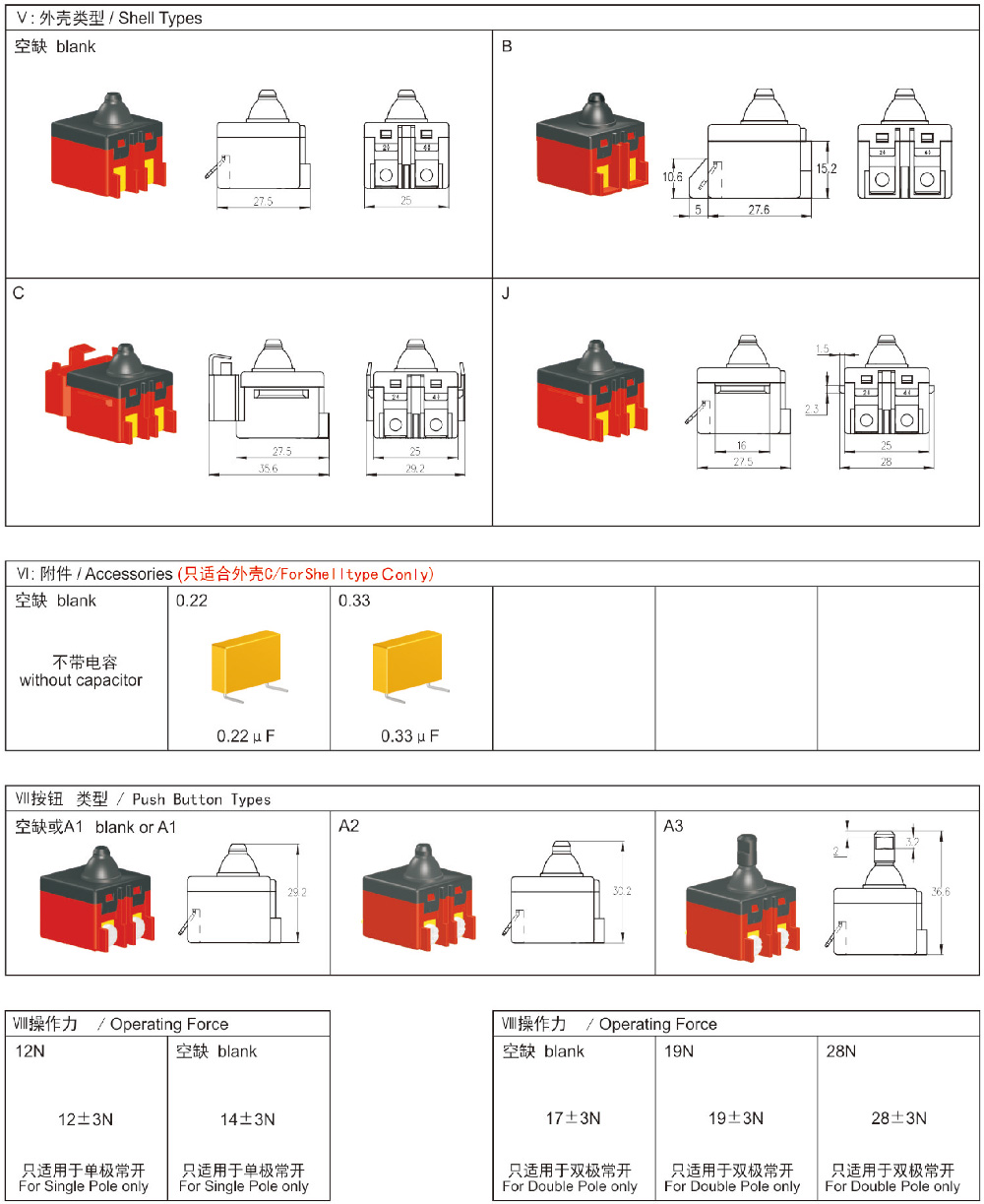

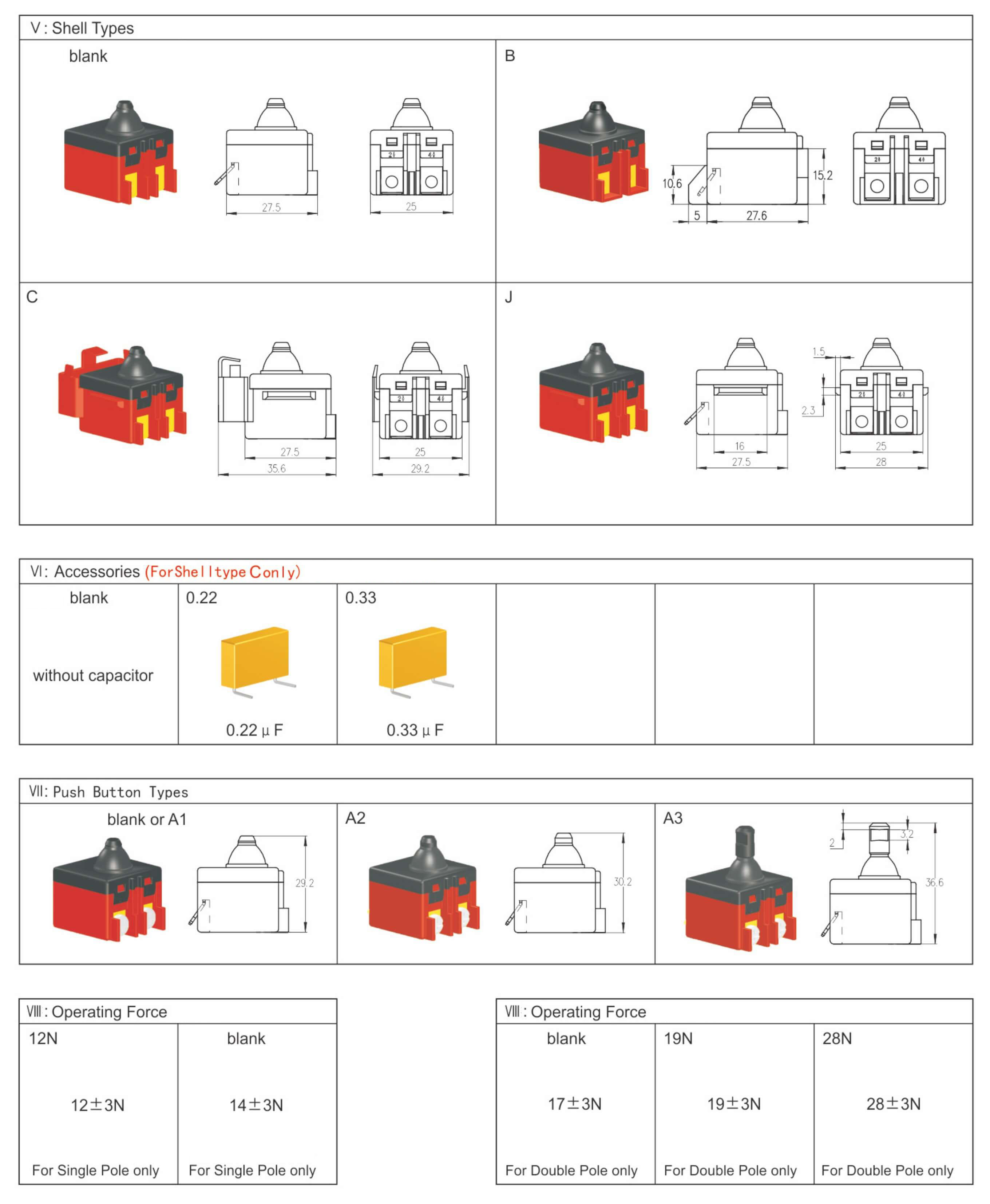

Optional Accessories:

• Suppression capacitor (commonly 0.22μF or 0.33μF)

Application Scenarios

The PB01 series is extensively used across a variety of portable electric tools that are subjected to heavy dust and vibration, such as:

• Angle Grinders (100mm, 125mm, and 150mm): Often used in metalwork, masonry, and fabrication tasks, these tools demand responsive and durable switching mechanisms.

• Polisher Grinders: Require precision control and on-off reliability for surface finishing and smoothing operations.

• Die Grinders: Small but powerful tools used for grinding in tight or hard-to-reach spaces, making reliable switches critical.

• Sanders: With prolonged use in dust-laden woodworking environments, the need for sealed, dustproof switches is essential.

The adaptability of the PB01 series to multiple power tool types makes it a preferred option for OEM manufacturers and industrial tool designers.

Performance and Reliability

The PB01 series is engineered with a focus on durability and high-performance operation:

• High Inrush Current Tolerance: This allows the switches to handle the surge of power when tools are first turned on, thereby extending switch life and tool efficiency.

• Versatile Configurations: The wide variety of switching combinations (SPNO, DPNO, DPNOP, etc.) allows tool manufacturers to integrate the switch into a range of circuitry designs.

• Dustproof Sealing: Maintains switch integrity and function over time, reducing downtime and maintenance costs.

• Accessory Flexibility: Capacitor options provide additional suppression of electrical noise and arcing, improving safety and switch life.

Installation and Integration

Installing the PB01 series switches is streamlined by its intuitive design:

• Input Terminal: M3.5 screw terminals ensure firm connectivity.

• Output Terminal: Plug-in type allows for quick tool assembly and replacement.

• Compatibility: Designed to fit within a wide array of tool enclosures, with consideration for both ergonomics and electrical integration.

Engineers and tool designers will appreciate the balance between compact size and powerful functionality, which simplifies both new designs and retrofits.

Frequently Asked Questions (FAQ)

Q1: What is the lifespan of the PB01 switch in a standard workshop environment?

• A: Under typical usage conditions, the PB01 switch offers mechanical endurance of at least 100,000 cycles and electrical endurance of 50,000 cycles.

Q2: Can the switch handle inductive loads like motors directly?

• A: Yes, the high inrush current ratings (up to 72A) make it suitable for direct motor control in most portable power tools.

Q3: Is the PB01 suitable for outdoor use?

• A: While it has IP40 protection, it is not waterproof. For outdoor use, ensure the tool housing offers additional environmental protection.

Q4: What capacitor should be used for suppression?

• A: Standard configurations use 0.22μF or 0.33μF capacitors, depending on circuit requirements.

Q5: Can this switch be integrated into tools requiring dual-pole switching?

• A: Yes, the DPNO and DPNOP configurations support dual-pole functionality.

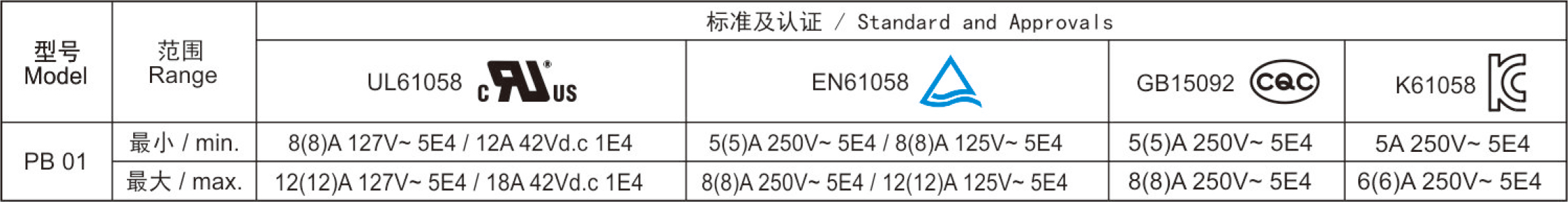

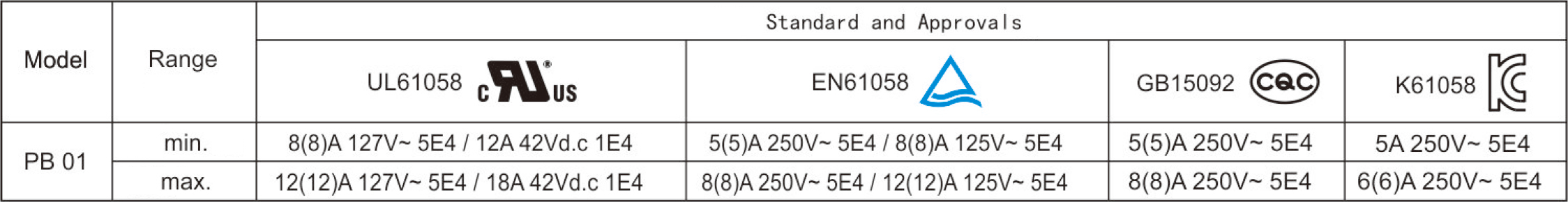

Q6: Are these switches compliant with international safety standards?

• A: Yes, with UL 94V-0 flammability rating and dielectric strength compliant with industrial standards, they are suitable for Class II appliances.

Conclusion

The PB01 series push-button switch provides a high-performance, dust-resistant solution for a wide range of portable power tools. Its durable build, electrical versatility, and ease of integration make it an optimal choice for tool manufacturers aiming for longevity and user safety. By incorporating the PB01, you ensure reliable performance in high-demand environments while maintaining flexibility for diverse electrical designs.

Whether upgrading existing products or launching new tool lines, the PB01 series stands as a dependable and robust component in modern power tool engineering.
