DT01 Dustproof DC Signal Trigger Switch

Overview:
DT 01 series are one special type DC signal trigger switches,integrated dustproof,designed specially for used in Brushless DC power-tools such as: Brushless Cordless Drills,Brushless Cordless Screw Dr
if need any qualification or test report,please email to 705714886@qq.com
Inquire Now

DT01 Dustproof DC Signal Trigger Switch

Inquire Now
Description

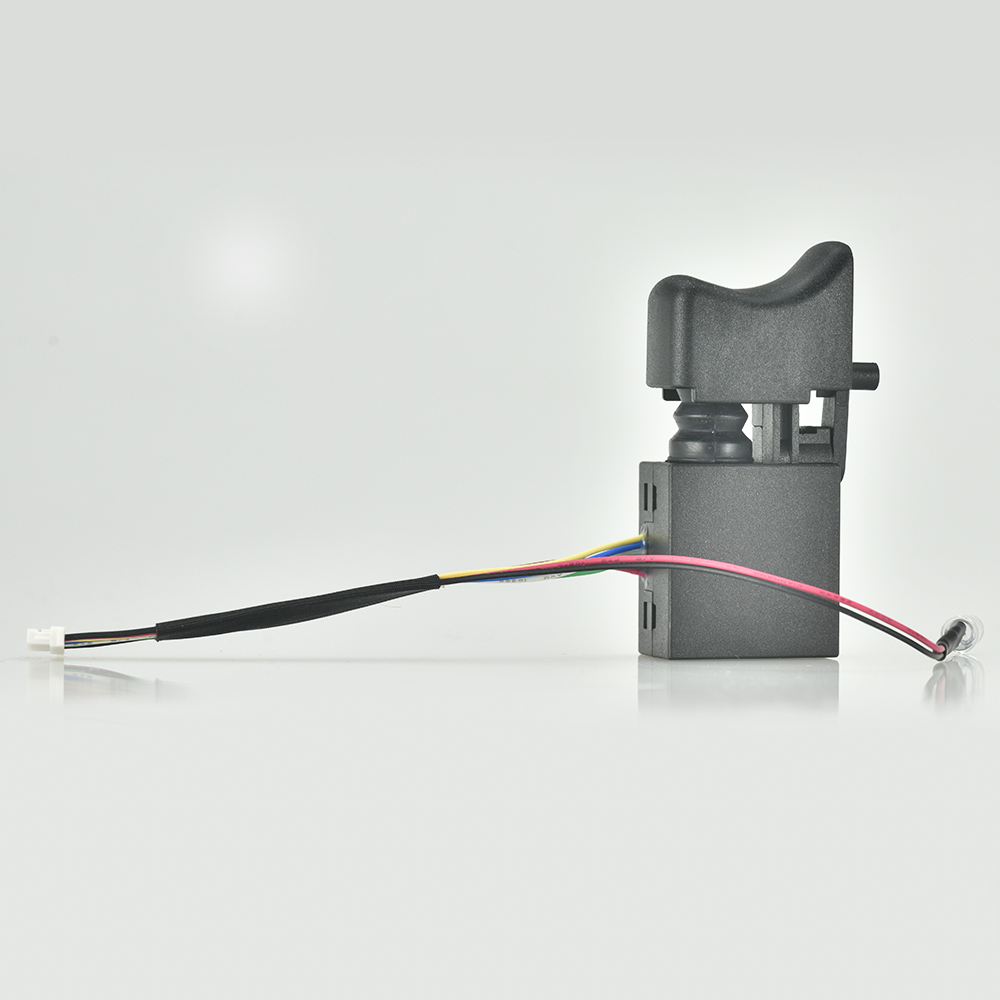

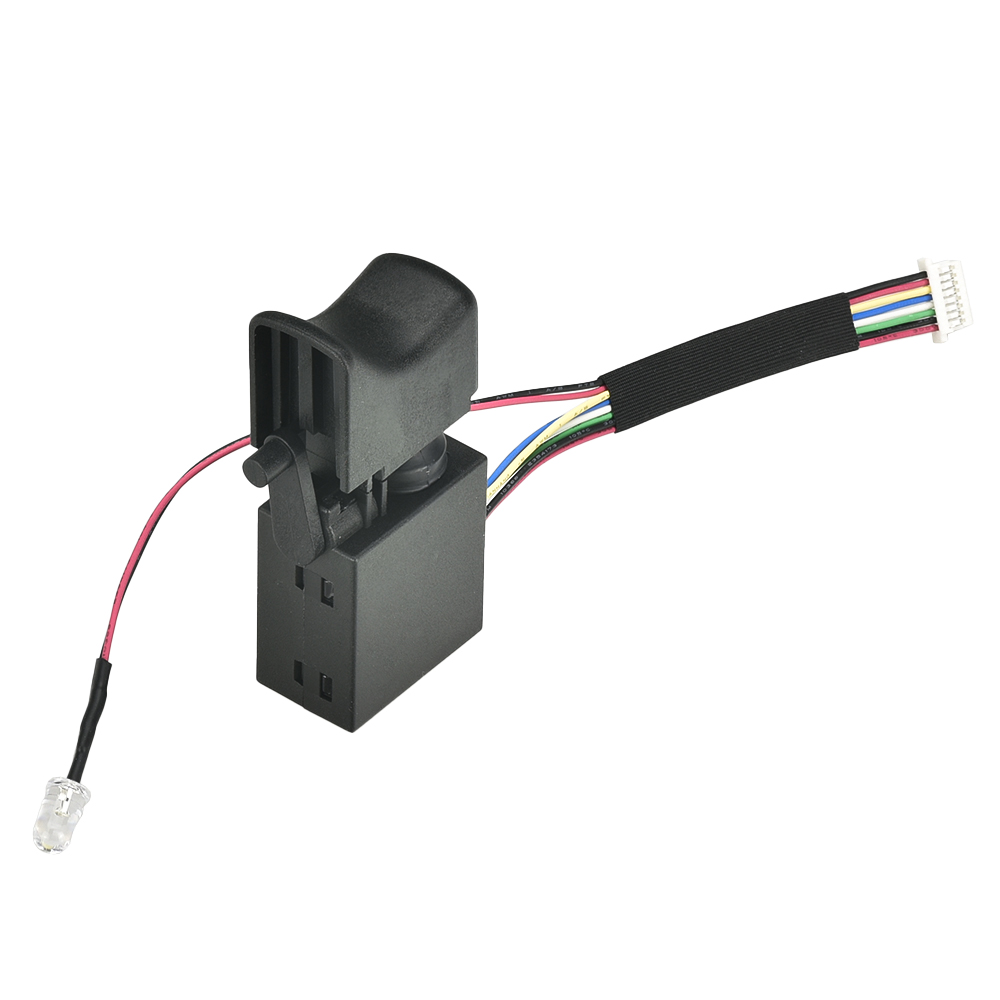

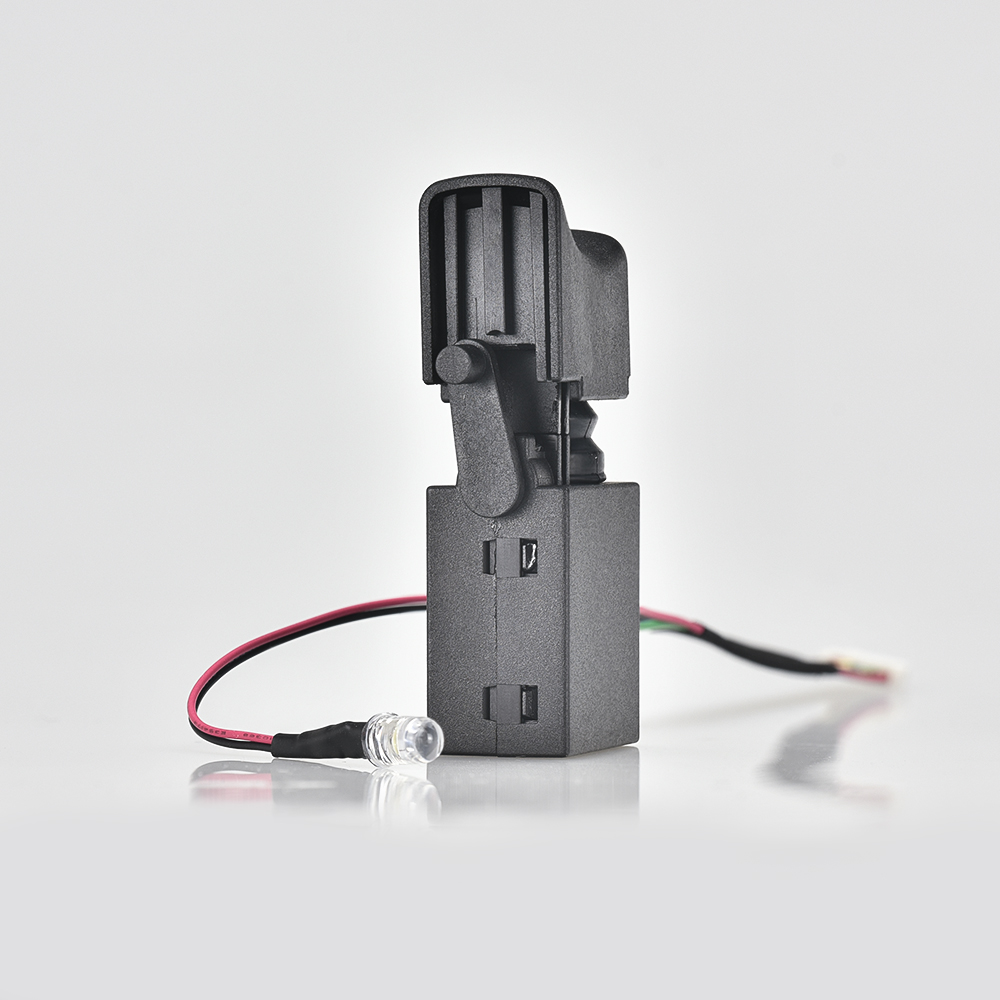

DT 01 series are one special type DC signal trigger switches,integrated dustproof,designed specially for used in Brushless DC power-tools such as: Brushless Cordless Drills,Brushless Cordless Screw Drivers, Brushless Cordless lmpact Wrenches,etc. With special design for assembly with PCB, needn't any wires.







Features

Optional with the function or accessories as follows:
 -Signal On-off version with linear potentiometer
 -Signal On-off version with Reversing and linear potentiometer
 -Signal Brake
 -Trigger covered with rubber (overmolding)



Parameter
Mechanical life endurance ≥5E4
Electrical life endurance ≥1E4
Max.currentat 42Vd.c 0.1A
Contact resistance ≤30m Ohm
Insulation resistance ≥7M Ohm
Dielectric strength of function 500V
Dielectric strength of reinforced 500V
Ambient temperature 0°C-55°C
Flammability UL94V-0
Protection type IP40



Terminals

Input side/Output side:
 -Wire terminal
 -Wire terminal with Plug



Model Range Standard and Approvals
DT 01 min. 20mA 12Vd.c 5E4 20mA 12Vd.c 5E4
max. 0.1A 42Vd.c 5E4 0.1A 42Vd.c 5E4

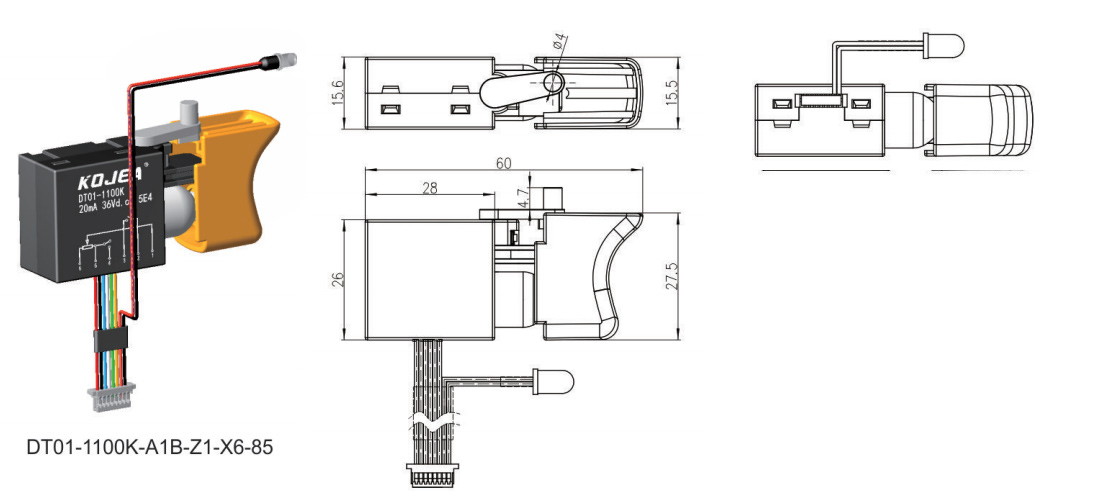

Ordering Information

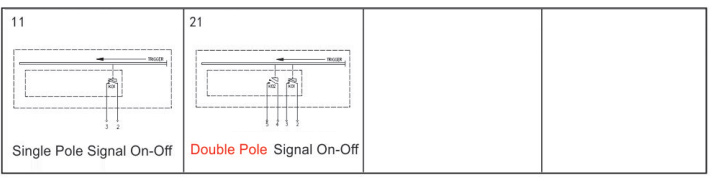

l: Function Types



ll: Current

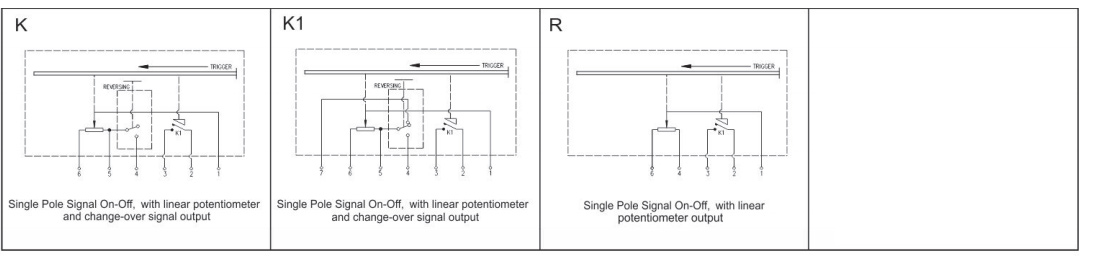

lll: Function Types

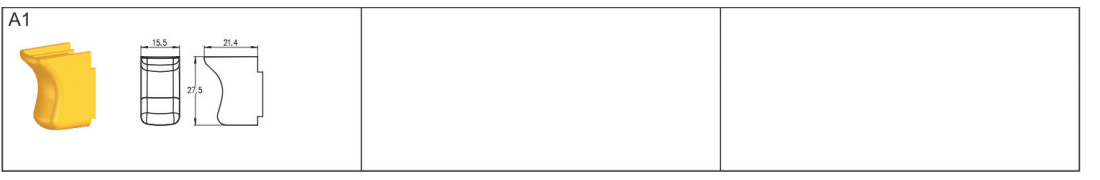

IV: Triggers



V: Triggers Colour

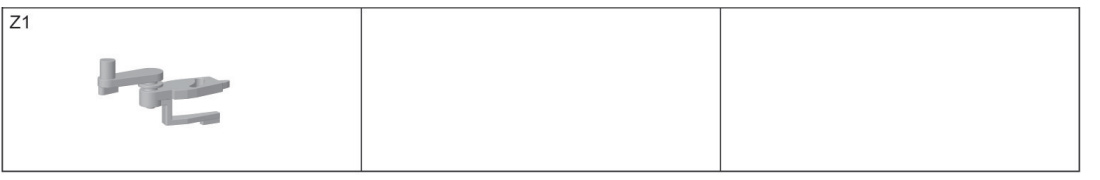

VI: Levers for Reversing

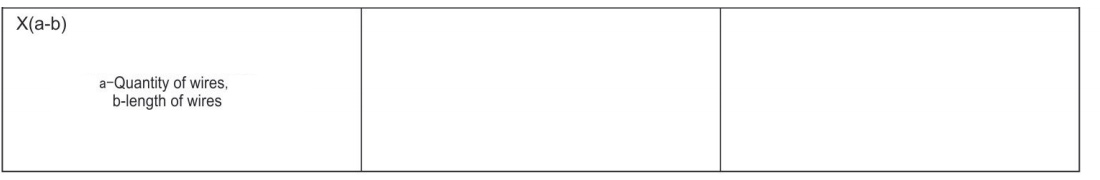

VII: Accessroies

Product Selection Form
