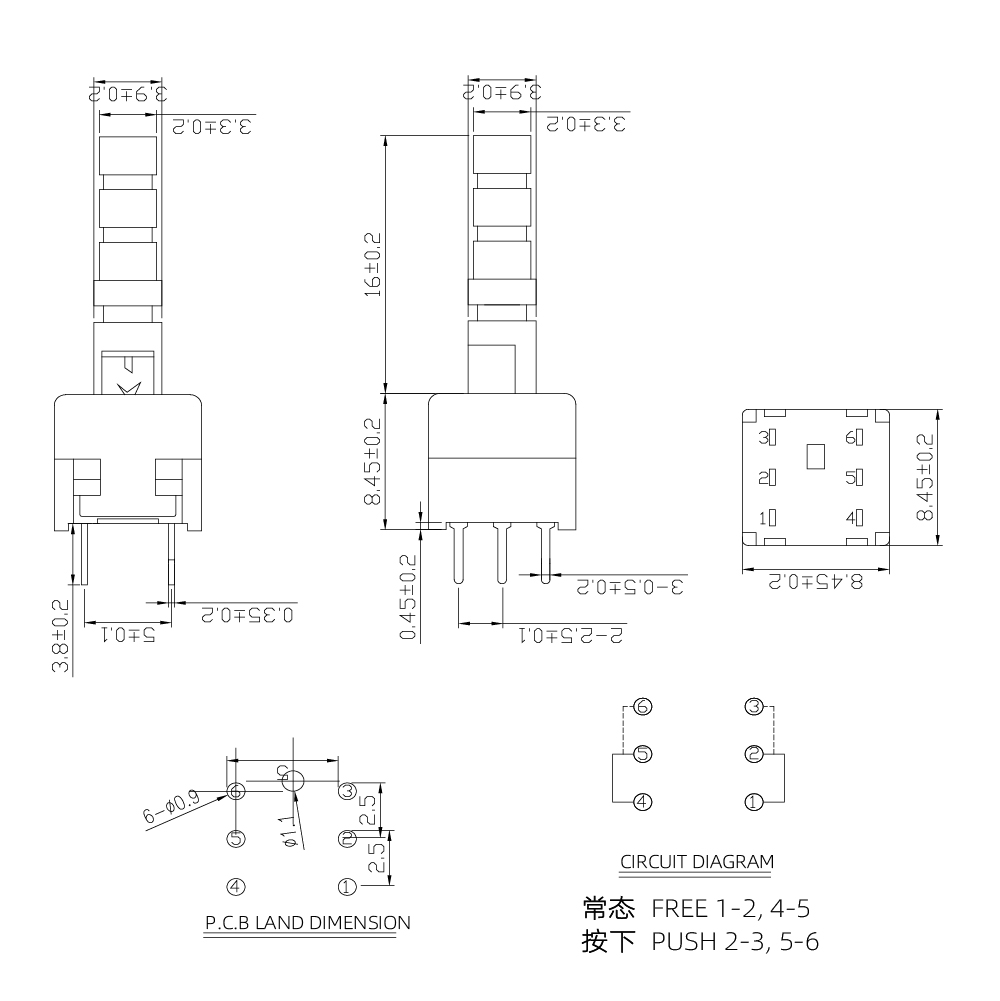

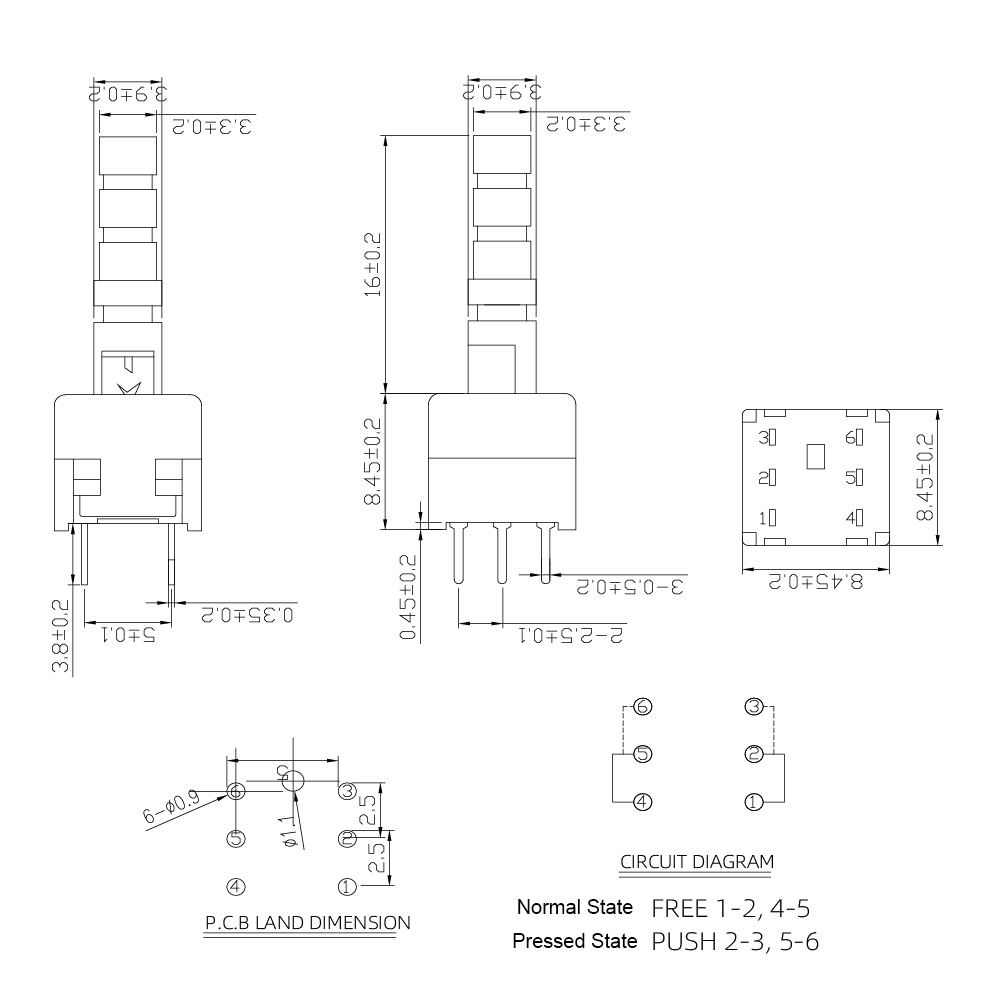

The switch sounds silvery, feeling and rhythm are perfect; Contact ways:SPDT & DPDT; There are 2 operating modes:Self-Lock and Non-Lock; The state of terminals and height of pushbutton can be designed according to customer's requirements;
The pushbutton switches can operate computer ancillary equipment, TV, audio equipment, all kinds of small autoimmunization equipment and instruments etc.
| Items | Standard | |
|---|---|---|
| Operating temperature range | -40℃ to +85℃ | |
| Electrical performance | Rating | 100mA. 30V DC |
| Insulation resistance | 100MΩ min. 100V DC | |
| Dielectric strength | 250V AC for 1 min. | |
| Contact resistance | 100mΩ max. | |
| Durability | Lifetime | 10,000 Cycles |
| Mechanical performance | Actuating Force | 250±50 gf |
We are a factory, we can guarantee our price is first-hand, not expensive and competitive.
if you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs. Express delivery charge depends on the quantity of the samples.
Depending upon the port of delivery, prices varies.
Generally our MOQ for switches is 10000pcs, and for mini switches is 50000pcs.
Also you can place a Trial orders at first without limit for MOQ.
Yes,we provide OEM service and can customize products according to the drawing.
We strictly control every detail of production, and every product is inspected by our QC team before delivery.
Samples, We will send to you within 3 days after payment received. Production for big quantity needs 7 to 15 days. And it also depends on product and quantity.
If you want to know the exact time. Email us the quantity, we will check the delivery time for you.
We will send the goods to you by sea, by air or by express like DHL, UPS, TNT, FEDEX,CHINA POST.
The switch sounds silvery, feeling and rhythm are perfect; Contact ways:SPDT & DPDT; There are 2 operating modes:Self-Lock and Non-Lock; The state of terminals and height of pushbutton can be designed according to customer's requirements;
The pushbutton switches can operate computer ancillary equipment, TV, audio equipment, all kinds of small autoimmunization equipment and instruments etc.
| Items | Standard | |
|---|---|---|
| Operating temperature range | -40℃ to +85℃ | |
| Electrical performance | Rating | 100mA. 30V DC |
| Insulation resistance | 100MΩ min. 100V DC | |
| Dielectric strength | 250V AC for 1 min. | |
| Contact resistance | 100mΩ max. | |
| Durability | Lifetime | 10,000 Cycles |
| Mechanical performance | Actuating Force | 250±50 gf |
